Locinox Modulec SA – Electric Strike for Surface Mounted Locks
NZD $418.08 + GST
Description
Easy-to-install electric keep for surface-mounted locks thanks to the patented Quick-Fix. Can be connected to both 12V – 24V and AC/DC.
Fail Close. Min 30mm gap required between post and gate.
Features:
- Fast and Easy Fixing with Quick-Fix
- Resistance to Pressure on the Latch Bolt: 300kg
- Same Drilling Pattern as SA, SH and SM Keeps
- Easy Left or Right Changing
- Corrosion-Resistant: Black Anodised Housing
- Adjustable for Gate Profiles: 40-60mm Width
- Voltage: 12V-24V AC/DC
- Consumption: 12V – 1,25A / 24V – 0,62A
- Power: 15W
Technical Specifications:
- Left-Right Adjustability – Yes

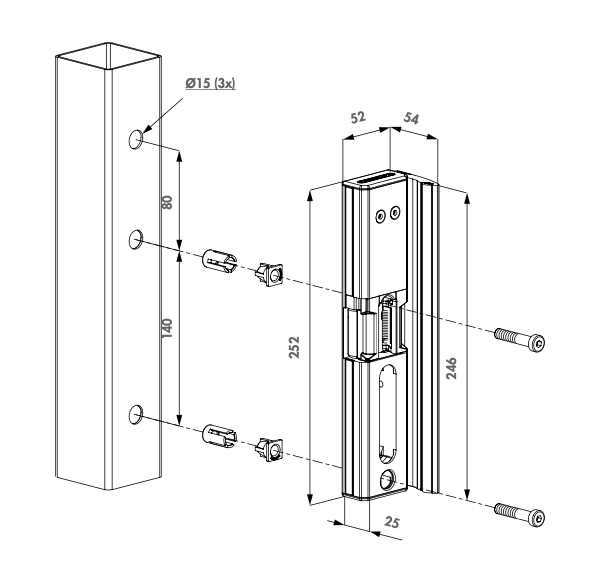

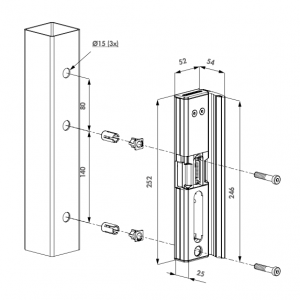

- Installation Method – Hexagon Screws (HEX 5) Quick-Fix
- Operating Voltage – 12V AC/DC 24V AC/DC
- Operating Current – 0,62A @ 24V 1,25A @ 12V
- Power – 15W
- Minimal Distance Gate: Post – 30mm
- IP Rating – 54
- Materials Main Part(s) – Anodised Aluminium Resin Encapsulated PCB Stainless Steel
- Hours of Salt Spray Testing – 500
- Test Frequency – 500000
- Years of Warranty – 2
Compatible Locks: LAKQU2, LAKQH2, and LX PANIC.
Installation Instructions – Click Here
