• Aluminium Vandal-Proof Housing with Scratch-Resistant Textured Lacquer
• Energy Efficient Adjustable White LED Lights
• Highly Resistant Stainless-Steel Push Buttons Tested for 1,000,000 Pushes and more
• Easy Installation and Configuration
• Easy Programming of up to 100 User Codes
• Frost-Free thanks to Smart Heating
• Time Range Adjustable Between Pulse and Timer Mode (100ms – 99s)

Compatible with:

• Power Supply, code: LX POWER-DC
• Power Box Housing, code: LX PB1
• Modulec SA Surface Mounted Electric Strike, code: LX MODULEC SA

Product Specifications:

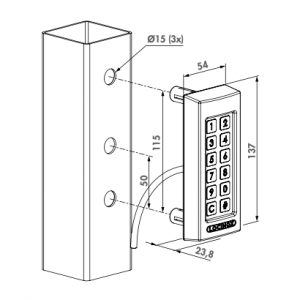

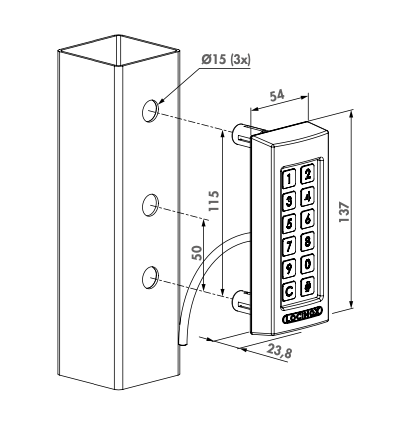

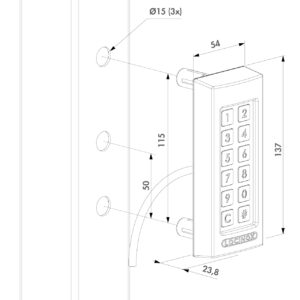

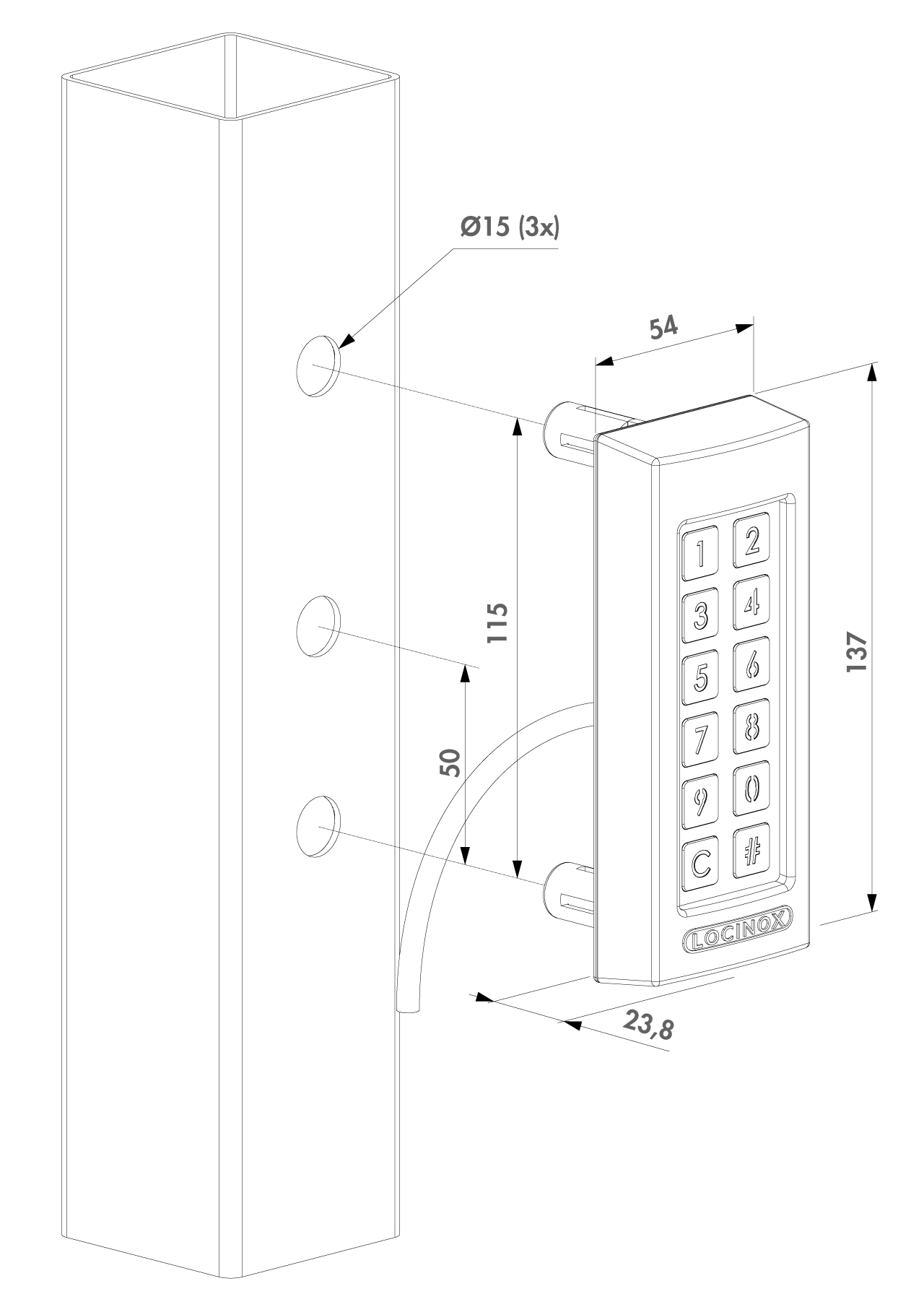

• Installation Method – Hexagon Screws (HEX 5) Quick-Fix
• Operating Voltage – 10V-26V AC/DC
• Operating Current – 1.0A (with heating)
• Power – 1,5W (> 5°C) + 12W at max heating (< -25°C)

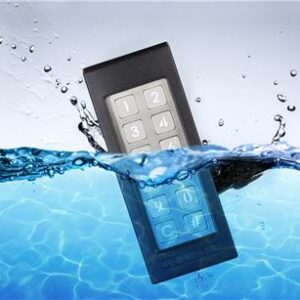

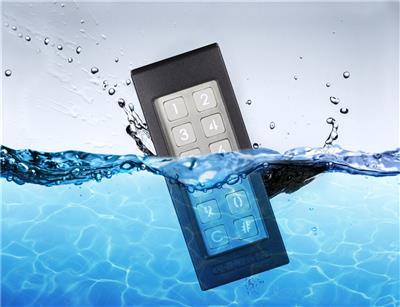

• IP Rating – 68
• Switching Contact Relays – 2x 0-26V AC/DC – 2A Internal 2x COM-NO-NC
• Length Provided Cable – 2000mm
• Materials Main Part(s) – Powder Coated Aluminium Resin Encapsulated PCB Stainless Steel
• Temperature Range – (-30°C / 85°C)
• Norms – X
• Hours of Salt Spray Testing – 500
• Test Frequency – 1,000,000
• Years of Warranty – 2
