Name: Locinox - Surface Mounted Electro-Magnetic Lock (MAGMAG3000)
Brand: Locinox
SKU: LX-MAGMAG3000
Availability: InStock

Description

For square posts and gate profiles of 40mm to 80mm, 300kg pulling force.

Magnetic lock with OR without handle. MAGMAG3000 with 300kg of pulling force. The aluminium powder coated housing equipped with the unique Quick-Fix ensures a fast and nicely finished mounting. Eliminate time-consuming welding; drilling 5 holes is enough to fix the lock. A two layer, protective coating guarantees that our electro-magnetic locks are ready for years of worry free use outside.

Features:

Guaranteed Holding Force Tested on Every Maglock
Special Two-Layer Protective Coating Developed for Outdoor Use
Powder Coated Aluminium Housing
Anti-Residual Magnetism Kick-Off System
Raised Edge on the Magnet Housing makes it Impossible to put a Crowbar Between the Magnet and the Armature Plate

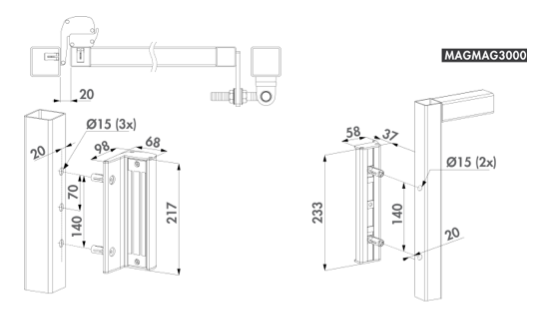

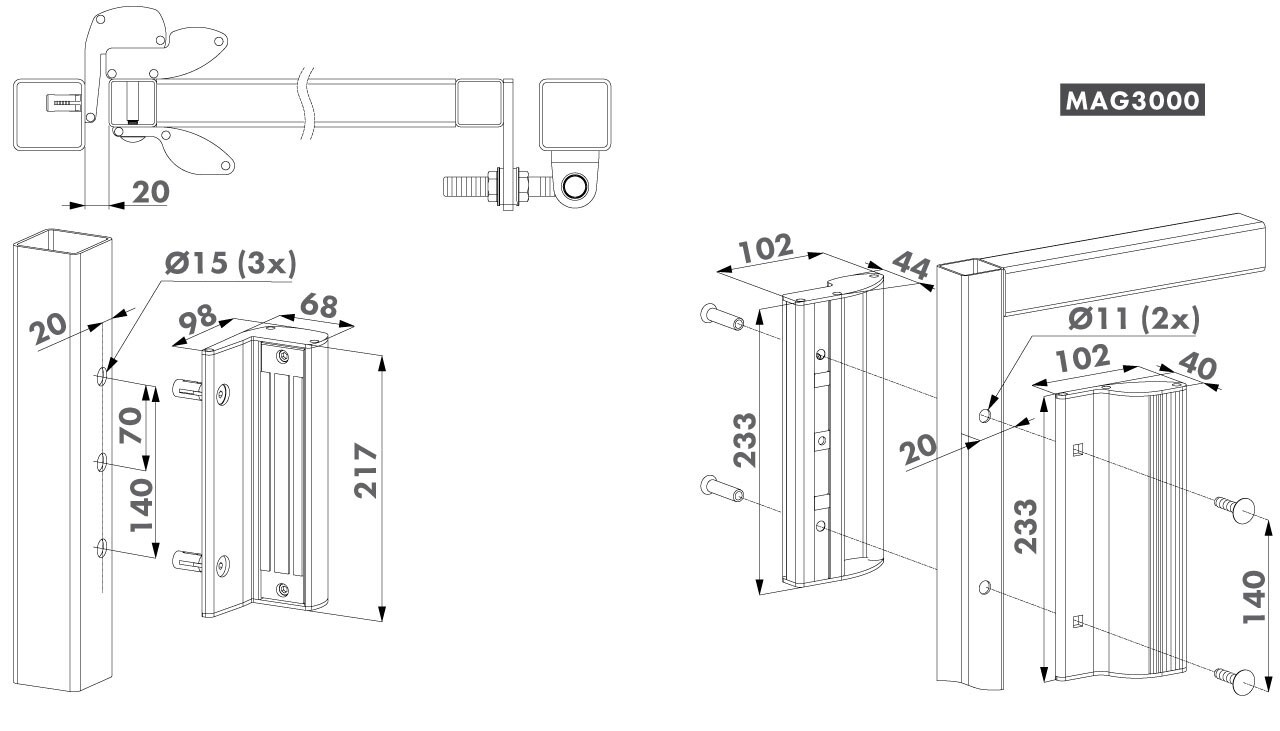

Fast and Easy Fixing by means of 5 Holes with Quick-Fix
Voltage: 12V / 24V DC
Current: 460mA / 12V or 230mA / 24V

Technical Specifications MAG3000:

Operating Voltage – 12V DC / 24V DC
Operating Current – MAG3000: 500 mA (12 V) or 250 mA (24 V) MAG6000: 460 mA (12 V) or 230 mA (24 V)
IP Rating – 68
Length Provided Cable – 1100mm
Materials Main Part(s) – Powder Coated Aluminium Special Two Layer Protective Coating
Norms – ISO 9227
Hours of Salt Spray Testing – 500
Test Frequency – 500000
Years of Warranty – 2

Technical Specifications MAGMAG3000:

Operating Voltage – 12V DC / 24V DC
Operating Current – MAGMAG3000: 500 mA (12 V) or 250 mA (24 V) / MAGMAG6000: 460 mA (12 V) or 230 mA (24 V)
IP Rating – 68
Length Provided Cable – 1100mm
Materials Main Part(s) – Powder Coated Aluminium Special Two Layer Protective Coating
Norms – ISO 9227
Hours of Salt Spray Testing – 500
Test Frequency – 500000
Years of Warranty – 2

Installation Instructions MAG3000 – Click Here

Installation Instructions MAGMAG3000 – Click Here
