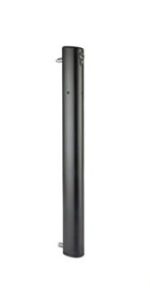

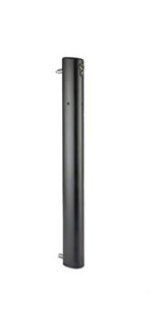

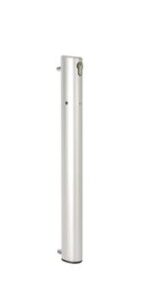

Description

Features:

• Vandal-Proof (Powder Coated Aluminium Housing)
• To be Connected to the Warning Light on Automated Gates (min 3-sec prewarning signal) or Directly on the Gate Automation
• Automatic Detection and Memorisation of the Continuous or Pulse Signal
• Mechanical Release Possible (by key) in Case of Emergency
• The Integrated Obstacle Detection will Automatically Stop the Drop Bolt Movement in Case of Overpressure to Avoid Injuries.

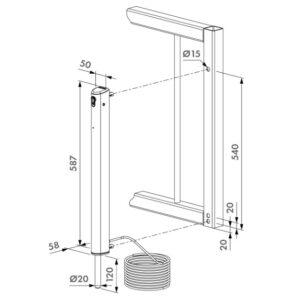

• Throw – 115mm
• Drop Bolt Diameter – 20mm
• Holding Force – >1000 kg
• For Gate Profiles – 40mm or More
• Power Consumption – Normal – 25 W / Peak: 72W / Standby: 0,2 W
• Cable Included – 5m
• Depth Adjustability – 20mm
• Included: 3012-37-STD Cylinder
• To connect to a Locinox PowerStone – 60W
• IP Rating – 54
• Materials / Main Part(s) – Powder Coated Aluminium with Stainless Steel Drop Bolt
• Hours of Salt Spray Testing – 500
• Test Frequency – 500000
• Years of Warranty – 2

Instruction Manual – Click Here
