Description

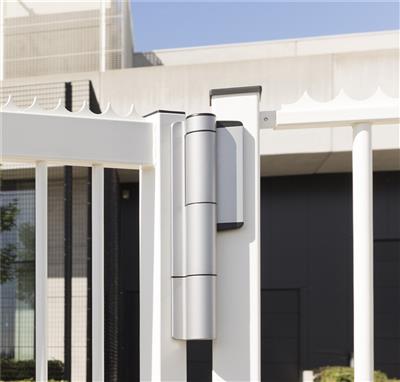

The Locinox Mammoth is an elegant and powerful self-closing hinge for 180° gate situations. Mammoth is perfectly fit for gates up to 150 kg and 1500 mm wide. It is equipped with a double bearing for exceptional functionality. The Active Thermal System guarantees a constant closing speed, unaffected by weather conditions. The Mammoth is an ideal combination with magnetic and mechanical locks. The Dino hinge is included with the Mammoth (Double Stainless Steel Bearing).

Features:

• Self-Closing Hinge with Patented Hydraulic Damping
• Aesthetic Design
• Powdercoated Aluminium Housing
• Closing Speed Unaffected by Temperature Changes
• Vandal-Proof
• For Left & Right Turning Gates
• Easy Mounting with Quick-Fix
• 2-Dimensionally Adjustable – 2 x 20mm
• Adjustable Closing Action for Perfect Closing, Smooth or Snap Shut
• Powdercoated Aluminum Casing
• Double Stainless Steel Bearing
• Especially Designed for Exterior Use: Rain & Frost-Proof
• Burglar Proof and Anti-Theft

Specifications:

• Left-Right Adjustability – Yes
• Gate Width – 900 – 1500mm
• Gate Weight – 0 – 150kg
• Force – 16Nm
• Maximum Opening Angle – 180°
• Final Snap Adjustability – Yes
• Speed Adjustability – Yes
• Horizontal Adjustability – 20mm
• Vertical Adjustability – 20mm
• Hydraulic Gate Closer – Yes
• Materials Main Part(s) – Powder Coated Aluminium
• Temperature Range – (-30°C / 70°C)
• Norms – ADA  PMR
• Hours of Salt Spray Testing – 500
• Test Frequency – 500000
• Years of Warranty – 3

Mammoth Installation Manual – Click here
