Description

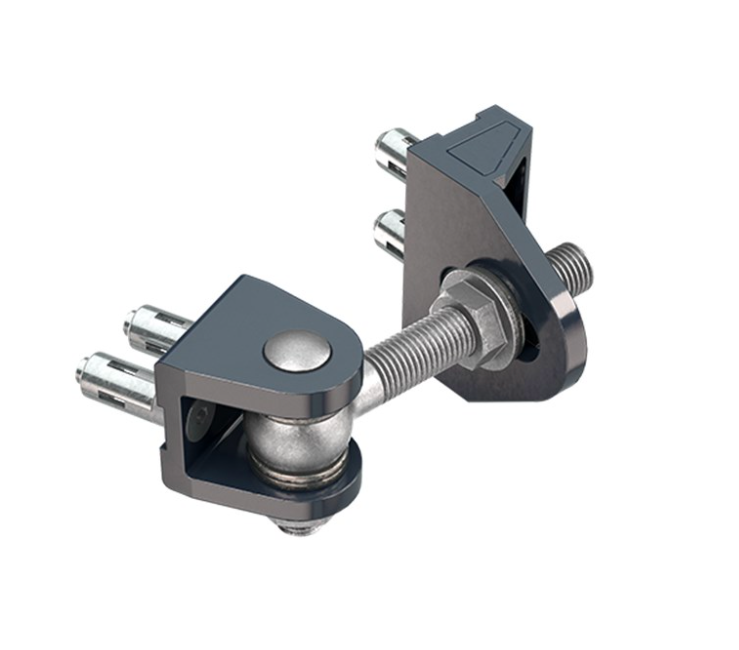

The Locinox Bolt-On 4D offers all advantages of the GBMU4D range: vandal-proof, adjustment of height, depth and distance between gate and post, left/right interchangeable so it can be used for both left and right turning gates. BOLTONHD-4D is available in M12 and M16.

Features:

• Easy to fix with Quick-Fix
• Vandal-Proof Eyebolt & Crossbolt
• 180° Opening
• No More Left or Right Swinging Gates in Stock
• U-Clamp and GRIP in Aluminium
• Hot-Dip Galvanized Eyebolt and Crossbolt

Specifications:

• Left-Right Adjustability – Yes
• Maximum Width of the Gate – 2000mm
• Minimal Distance Gate (Post) – 8mm
• Maximum Gate Weight – 200kg
• Horizontal Adjustability – 51mm
• Vertical Adjustability – 14mm
• Depth Adjustability – 25mm
• Materials Main Part(s) – Hot-Dip Galvanised Steel, Powder Coated Aluminium
• Hours of Salt Spray Testing – 500
• Test Frequency – 500000
• Years of Warranty – 3

Installation Instructions – Click Here
