Description

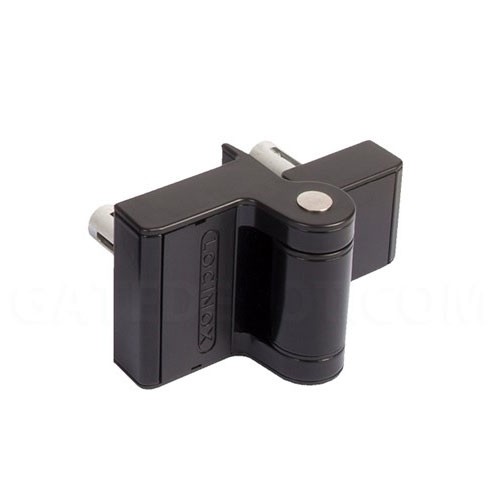

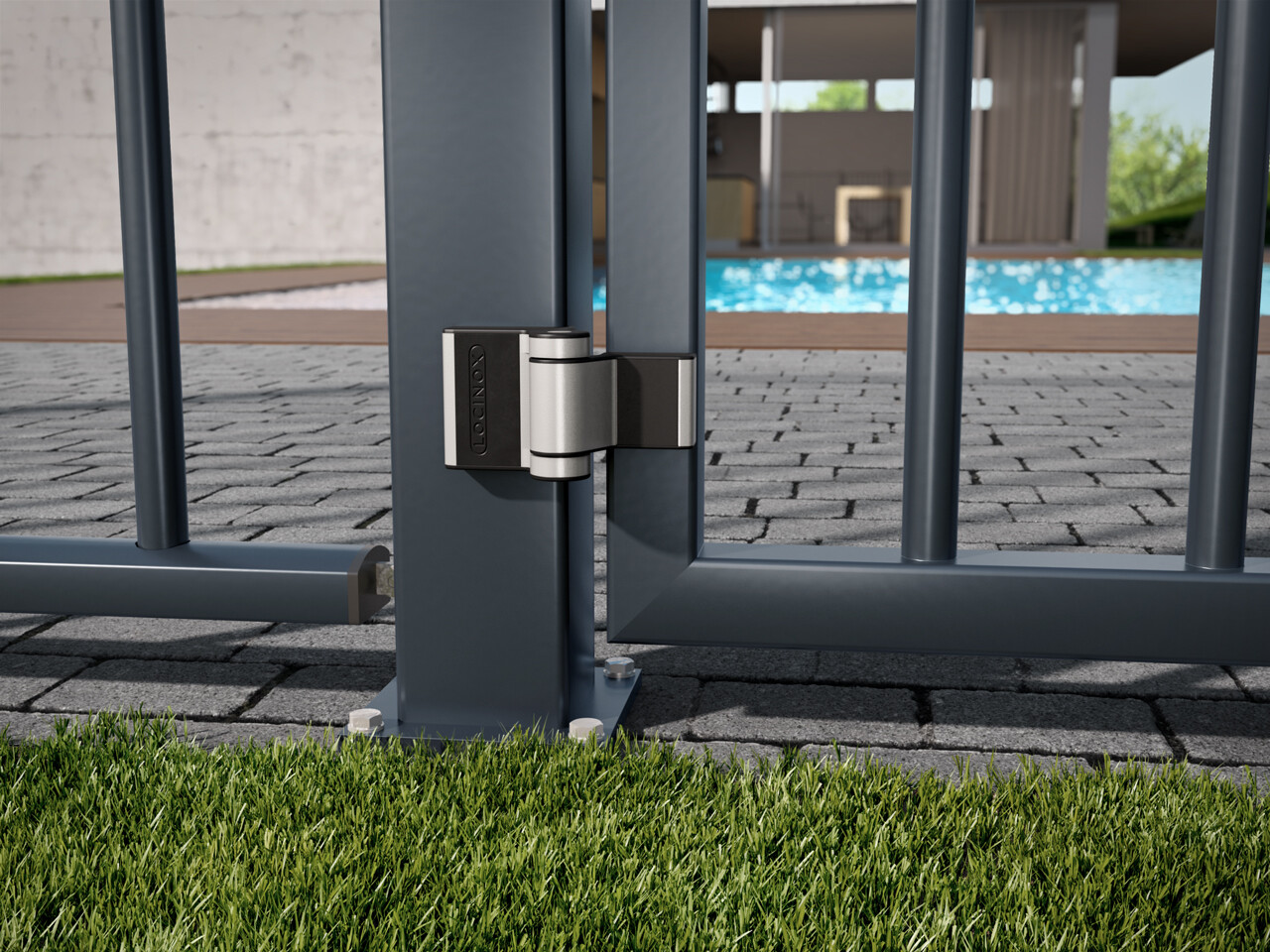

The Puma hinge is a compact surface mounted hinge with a powder coated aluminium housing. Its 180° opening angle together with its vertical and horizontal adjustability make the hinge flexible. Simple to install thanks to the Quick-Fix fastening system; no welding needed. This hinge easily supports gates up to 1 metre wide and 60 kg. The Puma hinge’s aesthetic design perfectly fits aluminium and smaller residential gates.

Features:

• 180° Opening and Closing Angle
• Resistant to Extreme Weather Conditions thanks to the Stainless Steel Hinge Axle
• For Gates up to 1m Wide and 60kg
• For Left and Right Opening Gates
• Aesthetic Design & Powder Coated Aluminium Housing
• 20mm Vertical Adjustability
• Easy Mounting with Quick-Fix
• 15mm Width-Adjustable

Technical Specifications:

• Left-Right Adjustability – Yes

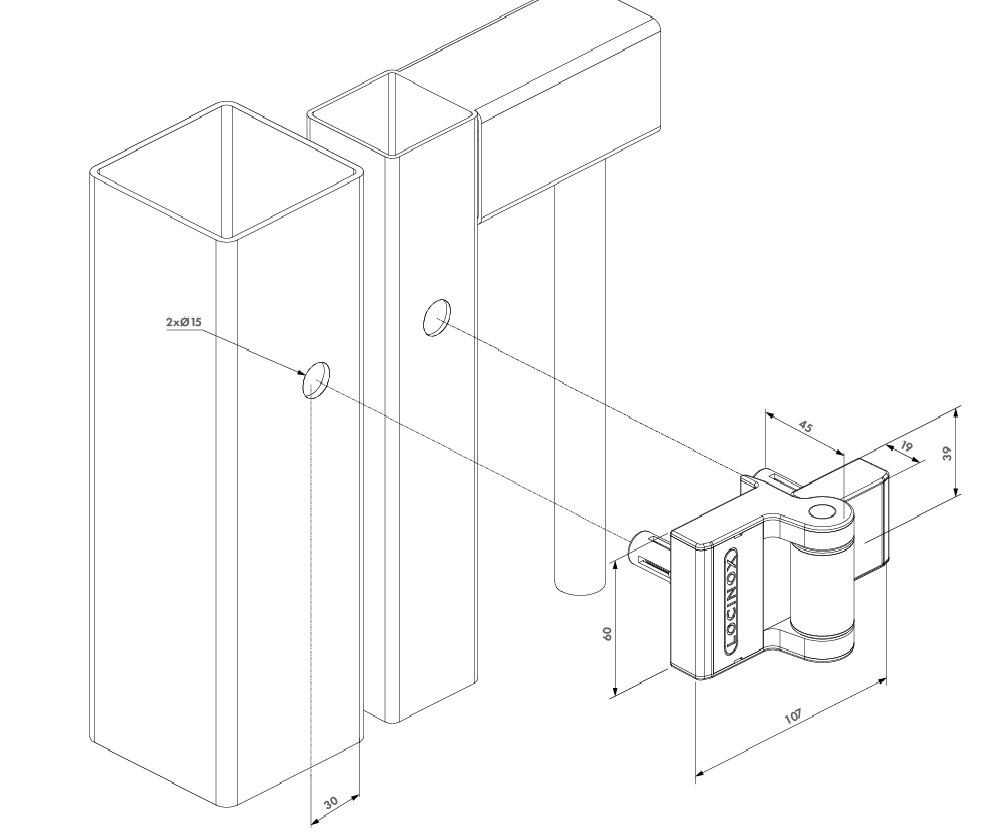

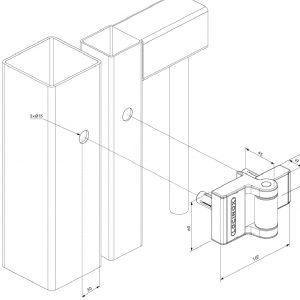

• Minimal Distance Gate: Post – 10mm
• Gate Weight – 60kg
• Horizontal Adjustability – 15mm
• Vertical Adjustability – 20mm
• Materials Main Part(s) – Powder Coated Aluminium Stainless Steel
• Hours of Salt Spray Testing – 500
• Test Frequency – 500000
• Years of Warranty – 3

Installation Instructions – Click Here
