Description

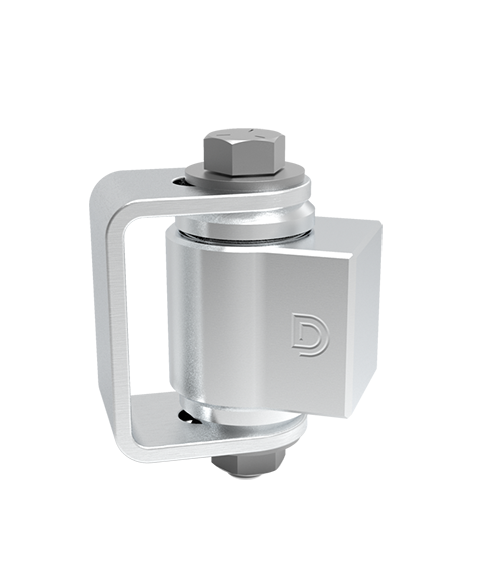

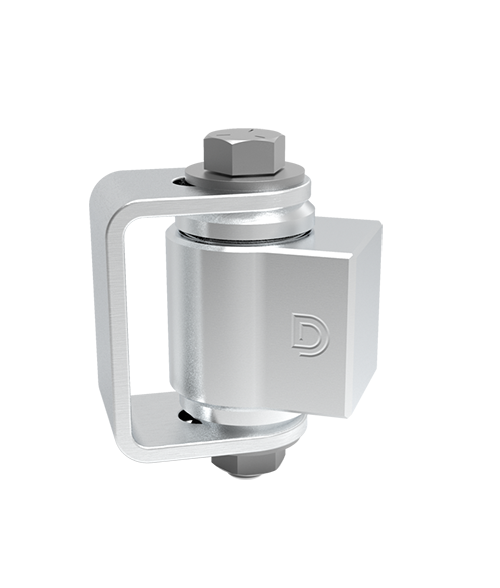

Like The ORIGINAL BadAss, The aluminium BadAss Gate Hinge is CNC machined to the tightest
tolerances in the industry. Due to SHUT IT’s unique bushing design The Aluminium BadAss, like all other SHUT IT gate hinges, produces near frictionless movement with maintenance free usage.

Features:

• Two Sealed Maintenance Free Bearings

• Adjustable Bracket for Precise Installations
• Perfect for that High-End Installation
• Ideal for Flat Post Installation
• Load Rating Per Gate: 450kg (1,000 lbs)
• Maximum Gate Weight: 270kg (600 lbs)

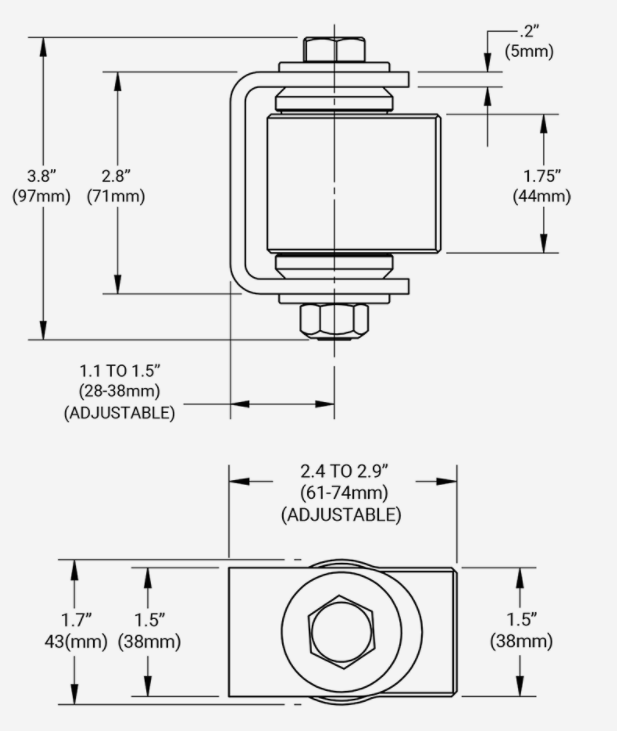

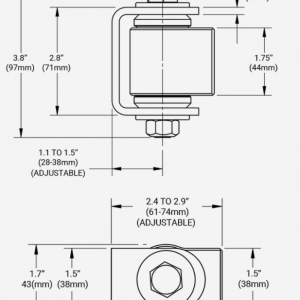

Technical Specification:

• Product Code – DD-CI3400 (Kit/Pair) / DD-CI3400
• Gate Application – Pedestrian Gate, Driveway Gate – Double, Driveway Gate – Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate
• Hinge Type – Aluminium
• Gate Material – Aluminium
• Maximum Gate Size – 2m H x 3m W – (7ft x 10ft)
• Gate Frame/Post Shape – Square-to-Square
• Minimum Post Size – 38mm+ (1½”)
• Ideal Gate Gap – 64-76mm (2½ – 3″)
• Fixing Method – Weld-On
• Colour – Raw

NZ Building Product Information – Click Here
