Description

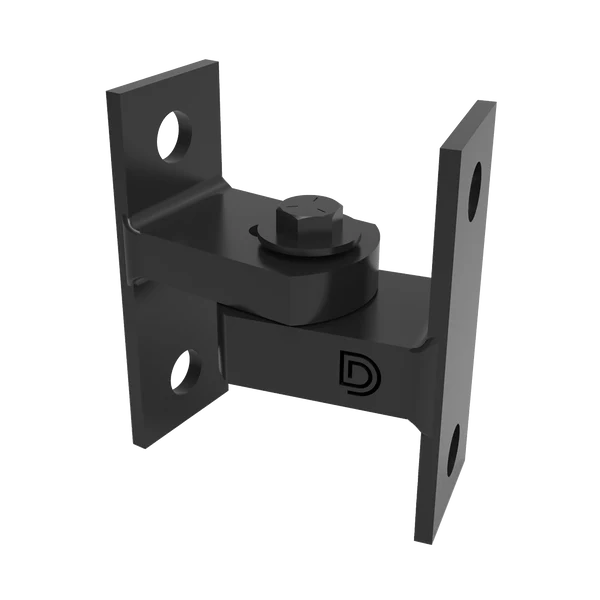

Unlike The Baby BadAss, The Bolt-On Bady BadAss was designed to be used on smaller gates where welding the hinges to the gate and the end post is not an option. The Bolt-On BadAsses produce near frictionless movement with maintenance free usage.

Features:

• One Sealed Maintenance Free Bearing
• Adjustable Barrel for Precise Installations
• Flat, Bolt-On Brackets for Through Bolting
• Zinc Plated
• Load Rating per-gate: 270kg (600 lbs)
• Maximum Gate Weight: 100kg (250 lbs)

Specifications:

• Gate Application – Pedestrian Gate, Driveway Gate – Double, Driveway Gate – Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate
• Gate Type – Non Self-Closing
• Gate Material – Steel/Ornamental Iron
• Approx Gate Size – 2m H x 3m W (7ft x 10ft)
• Gate Frame/Post Shape – Square to Square
• Minimum Post Size – 38mm+ (1½”)
• Ideal Gate Gap – 76-89mm (3- 3½”)
• Fixing Method – Bolt-On
• Finish – Zinc

Dimensions Document – Click Here
