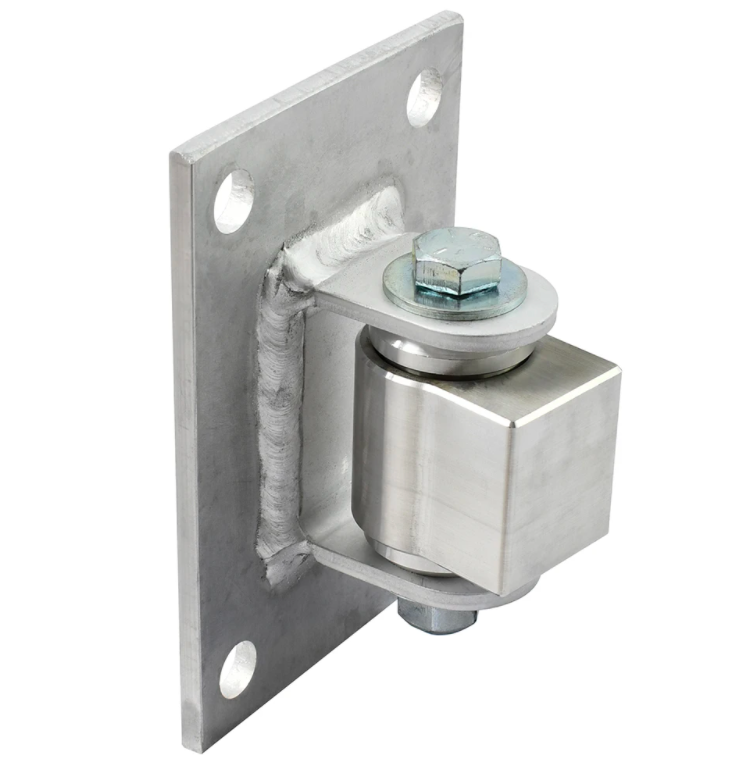

Description

With a wide mounting plates and four anchor points, the 4” and 6” Half Bolt-on BadAss hinges reduce fence post flexing, preventing fatigue in the fence post. Four anchor points position bolts at the sides, rather than the center of the fence post for a solid, stronger connection. Shut It gate hinges are assembled in the U.S.A. with the industry’s first maintenance-free high-temperature sealed bearings, which are safe to powder coat with the hinges installed on the gate.

Features:

• Made to Bolt or Weld to 102mm – 127mm (4” or 5”) Fence Posts
• Wider Brackets Enable Anchor Points to be Positioned at the Sides, Rather than Centre of Fence Post – Reducing Flexing, Preventing Fatigue in Fence Post
• High-Temperature Sealed Bearings – Safe to Powder Coat with Hinges Installed on Gate
• No Greasing, No Maintenances. EVER!
• Precision Bushing – Distributes Gate Load for Optimal Performance and Longer Life
• CNC Machined to Perfection and Near Frictionless Movement
• Max Gate Load: 450kg (1,000 lb)
• Max Gate Weight: 270kg (600 lb)
• Limited Lifetime Warranty

Technical Specifications:

• Product Code – DD-CI3740A (Kit/Pair)
• Hinge Type – Non Self-Closing
• Gate Material – Aluminum
• Maximum Gate Size – 1.5m x 2m (6ft W x 8ft H)
• Gate Frame/Post Shape – Square-to-Square, Square-to-Round
• Minimum Post Size – 38mm+ (1½”)
• Ideal Gate Gap – 73-86 mm (3 ¼” – 3 ¾”)
• Fixing Method – Bolt-On or Weld-On
• Finish – Unfinished

Installation Instructions – Click Here

NZ Building Product Information – Click Here
