Description

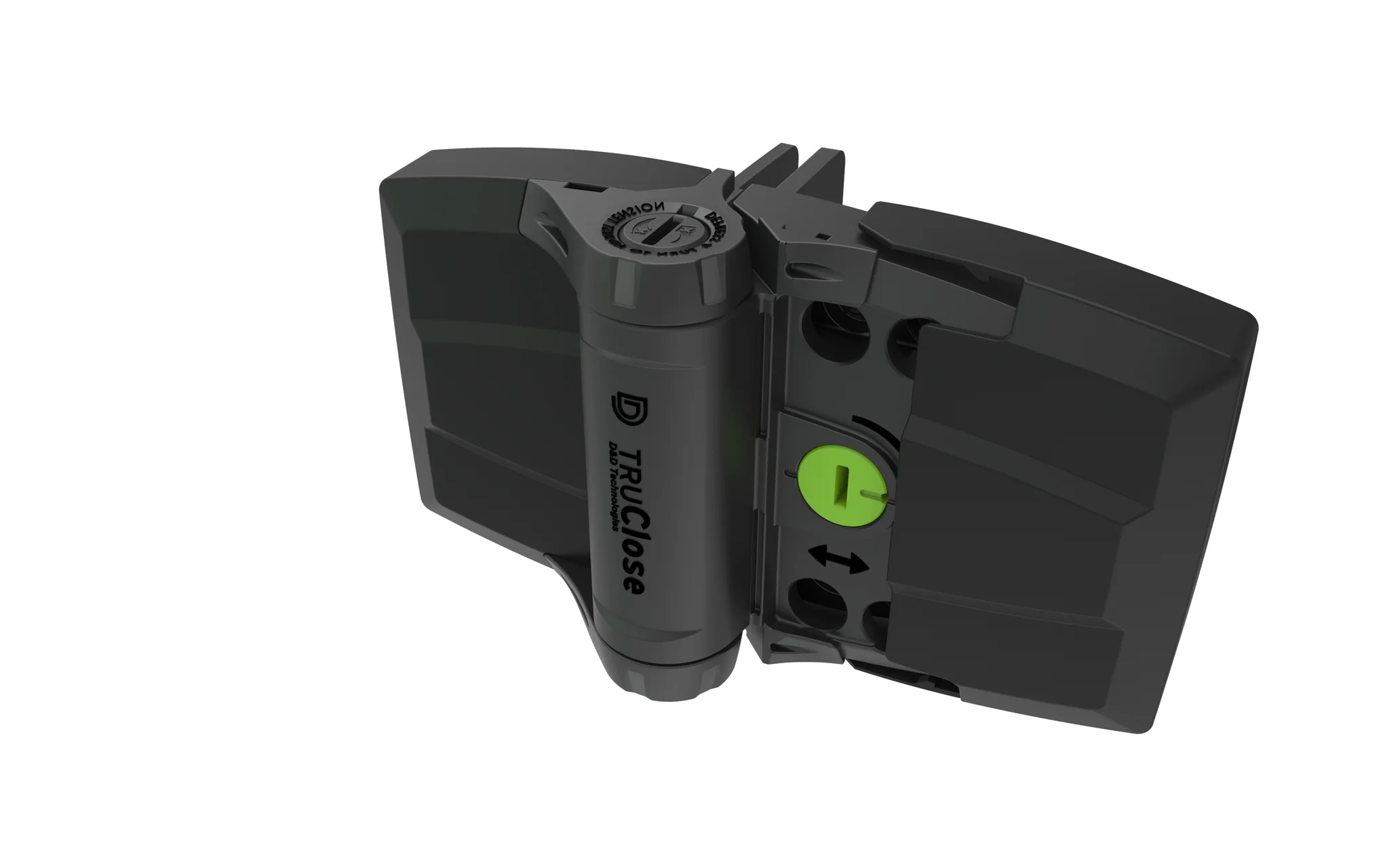

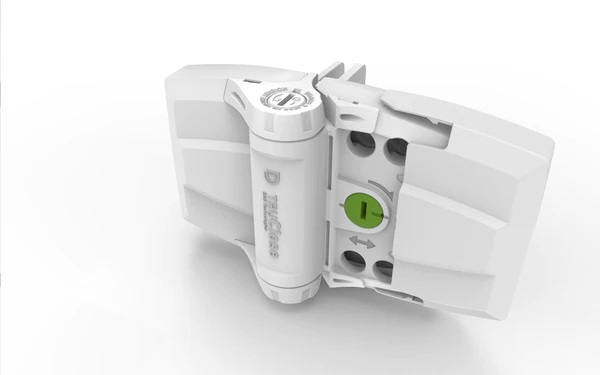

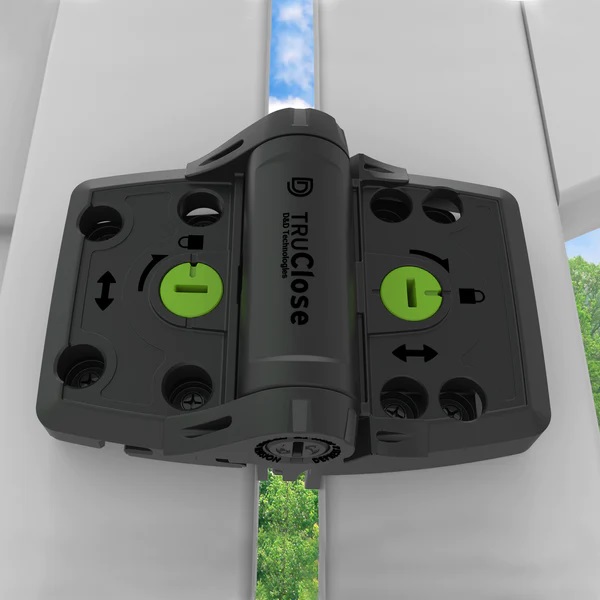

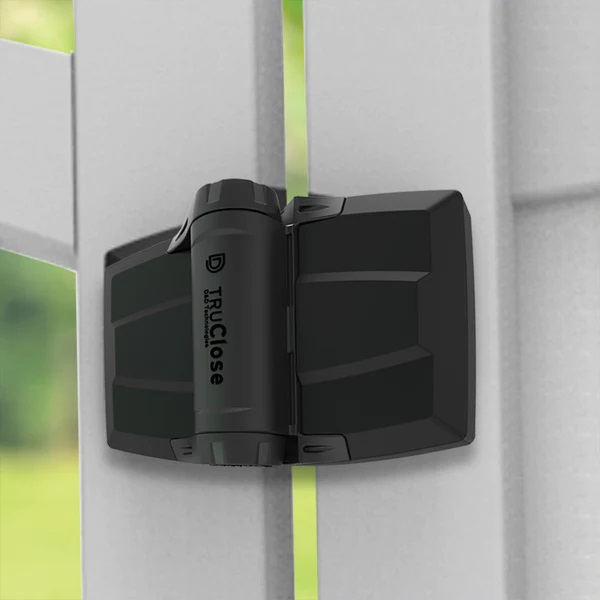

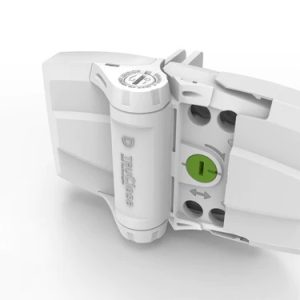

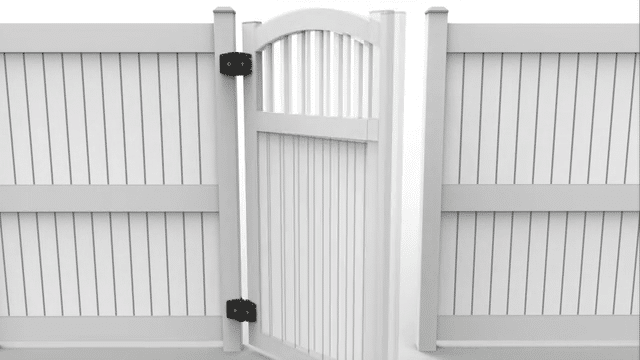

TruClose® Gate Hinges are the world’s most trusted gate hinges. These polymer and stainless steel hinges were devised to overcome all the problems associated with conventional gate hinges – rust, binding, sagging and staining. The heavy-duty TruClose® MULTI-ADJUST™ Hinges are the world’s most adjustable gate hinges that will solve gate sag for good! Tension adjustable, self closing hinges with easy vertical and horizontal adjustments. They’re ideal for heavy or high-traffic vinyl or composite gates and will self close gates weighing up to 70kg (154 lbs).

Features:

• Highly Adjustable Gate Hinges for Vinyl & Composite Gates
• Patented 3-in-1 adjustment, solves gate sag for good!
• Gate gap variance from 16-43mm
• Self-closes vinyl & composite gates up 70kg
• Won’t rust, bind, sag or stain
• Made from super-strong engineered polymer
• Internal stainless steel spring and components
• UV stabilised, self-lubricating durability
• Only one person needed to hang large gates
• Independently tested to comply with AS1926 -12 standards
• Australian Made
• Limited Lifetime Warranty

Technical Specifications:

• Product Code – DD-TCHDMA1S3BT
• Gate Application – Front Gate, Side Gate, Pedestrian Gate, Pet Gate, Public/Commercial Gate, Security Gate, Privacy Gate
• Hinge Type – Self-Closing
• Gate Material – Vinyl/PVC
• Maximum Self-Closing Gate Weight – 70kg (154lbs)
• Gate Size – 1m H x 1.8m W (3ft x 6ft)
• Gate Frame/Post Shape – Square-to-Square
• Min Post Size – 75mm (3″)
• Ideal Gate Gap – 25mm (1″)
• Fixing Method – Screw-On
• Colour – Black or White

Instruction Document – Click Here
