Description

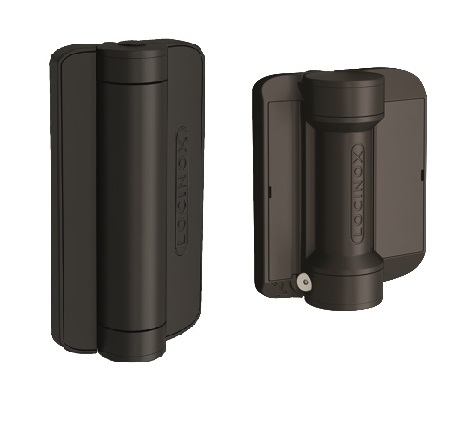

For gates up to 60kg, the Caracal comprises a hydraulic closer plus spring hinge and guarantees a damped closing according to the desired speed settings. The Caracal is suitable for metal, vinyl or wooden gates. The Caracal offers zero welding required.

Features:

• Max Width – 1050mm
• Max Weight – 60kg
• Max Opening – 180°
• Hydraulic Dampening – Yes
• Speed Adjustability – Yes
• Easy to Open – 11Nm
• Quick-Fix or Self-Drilling Screws
• Final Snap Adjustability – No
• Left / Right Adjustability – Yes

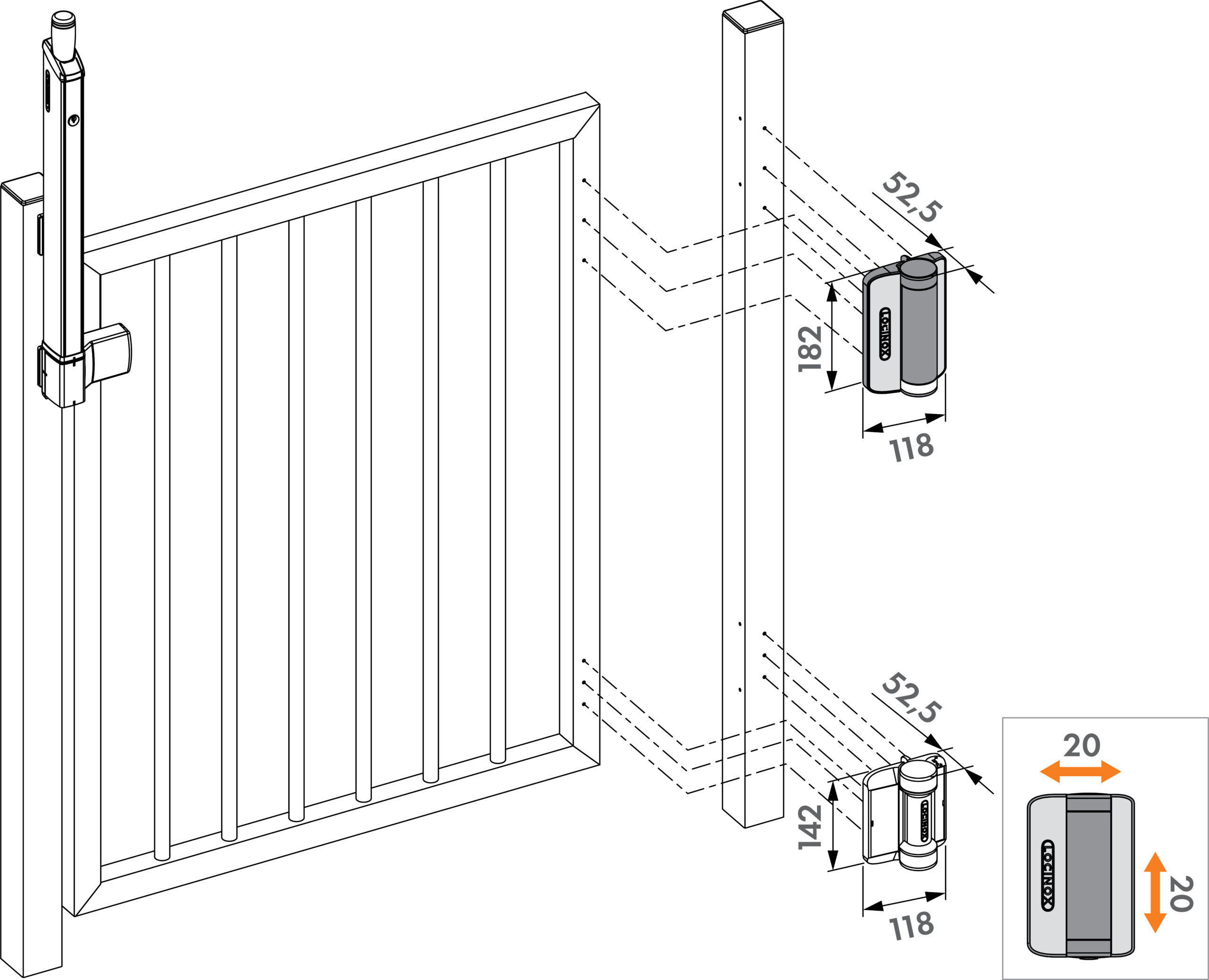

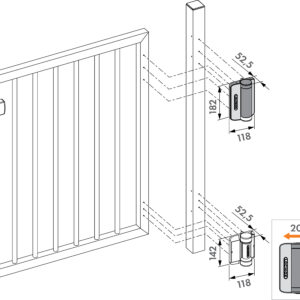

• Vertical & Horizontal Adjustability – 20mm
• Depth Adjustability – 15mm
• Materials / Main Part(s) – Fiberglass Reinforce Polyamide
• Temperature Range – (-30°C / 70°C)
• Hours of Salt Spray Testing – 500
• Tested Cycles – 500000
• Years of Warranty – 3

Caracal Installation Manual – Click Here
