Description

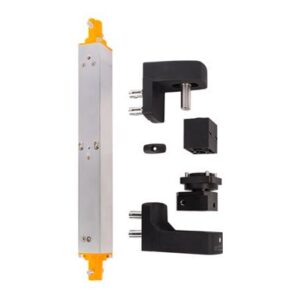

This highly aesthetic solution opens and closes the gate comfortably. The integrated pre-tension ensures an efficient and flawless installation where speed and final snap can be adjusted accurately to fit any need. A constant closing speed is guaranteed in all weather conditions, without any adjustments needed. Interio is perfectly suited for both left and right turning gates. The Interio is recommended in use with a gatestop.

Features:

• Self-Closing up to 125° (depending on the situation) with Adjustable Closing Speed and Final Snap
• For Left & Right Turning Gates
• Optional Sets Available for Ground and Wall Installation
• Easy to open: Max. 20 Nm
• Adjustable Closing Speed and Final Snap
• Constant Closing Speed in Hot or Cold Weather
• Vandal-Proof
• Available for 50 and 60mm Profiles with Maximum 2mm Thickness
• Secure, Fast and Easy Attachment thanks to Quick-Fix Mounting Bolts

Specifications:

• Left-Right Adjustability – Yes
• Gate Width – 0 -1500mm
• Gate Weight – 0 – 150kg
• Force – 20Nm
• Maximum Opening Angle – 125°
• Final Snap Adjustability – Yes
• Speed Adjustability – Yes
• Hydraulic Gate Closer – Yes
• Materials Main Part(s) – Powdercoated Aluminium
• Temperature Range – (-30°C / 70°C)
• Norms – ADA PMR ROSPA
• Hours of Salt Spray Testing – 500
• Test Frequency – 500000
• Years of Warranty – 3

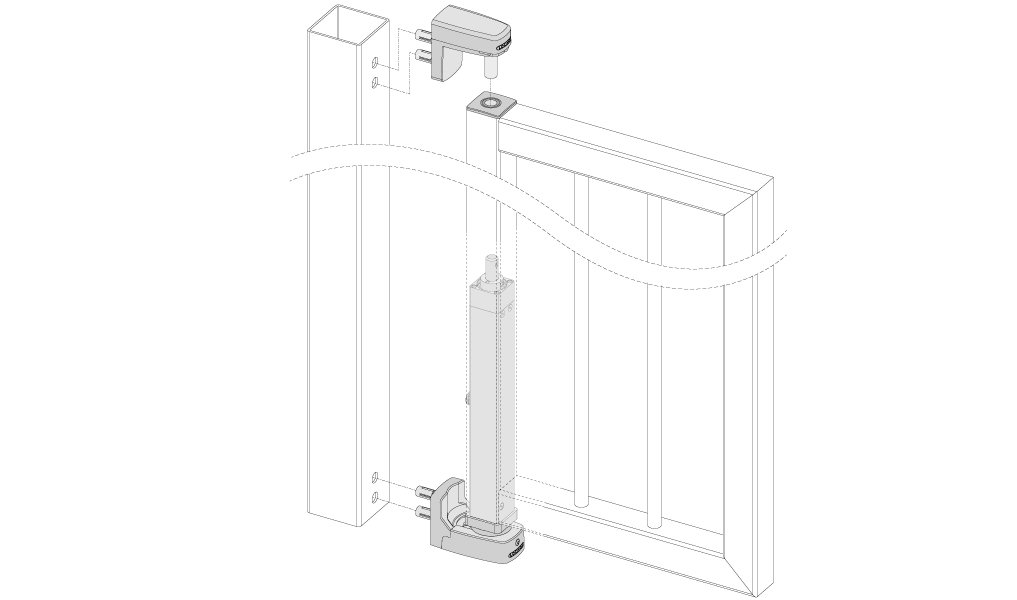

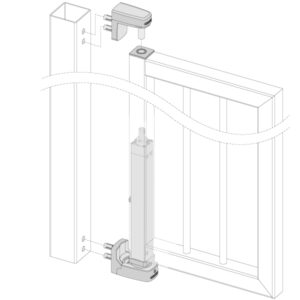

INTERIO INSTALLATION INSTRUCTIONS
