Description

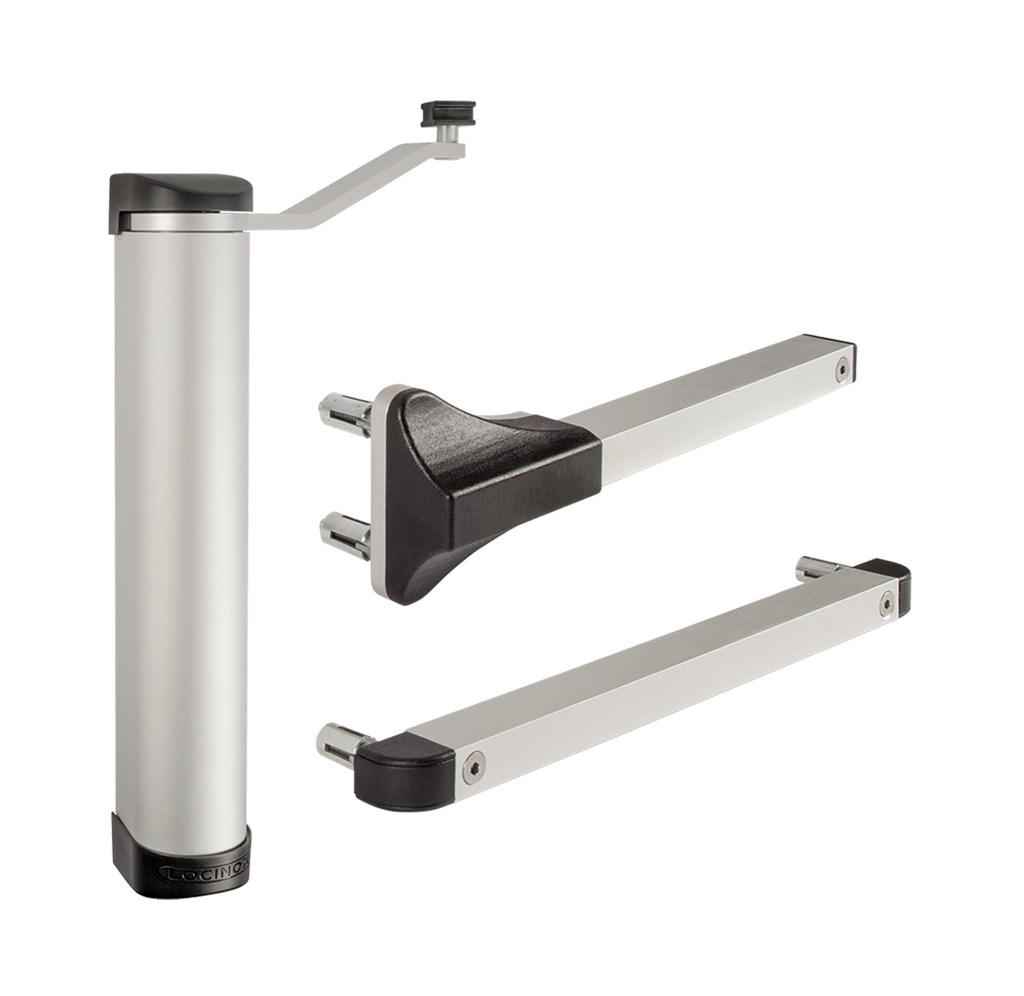

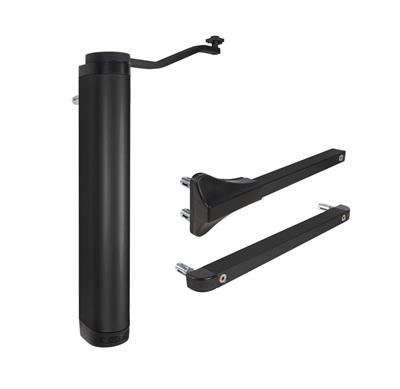

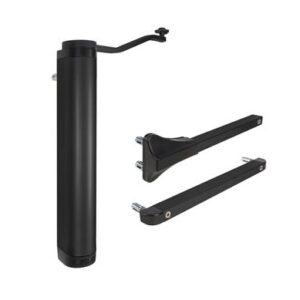

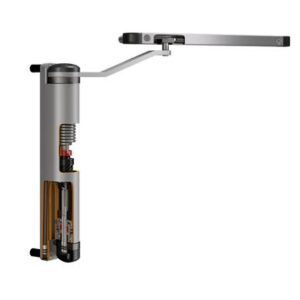

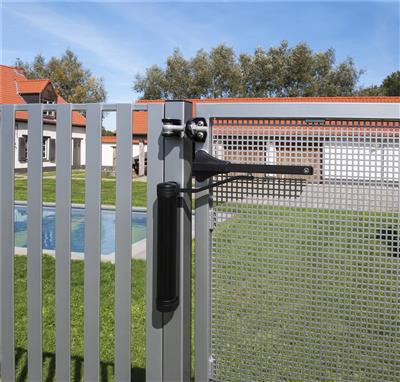

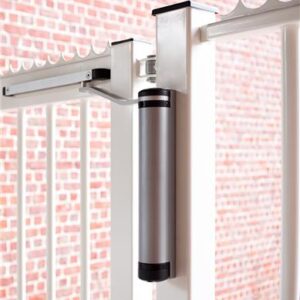

The attractive and compact Lion gate closer is unique in its kind. This hydraulic all-rounder is fit for every possible gate situation. Moreover, both 90° and 180° railsets are included in the package, allowing for more flexibility on site. The anodized aluminium housing combines a handsome look with a durable and spotless functioning for many years. Choose the Lion-VTC Drill for an even faster installation.

Features:

• Automatic 180° – closing with adjustable closing speed and final snap

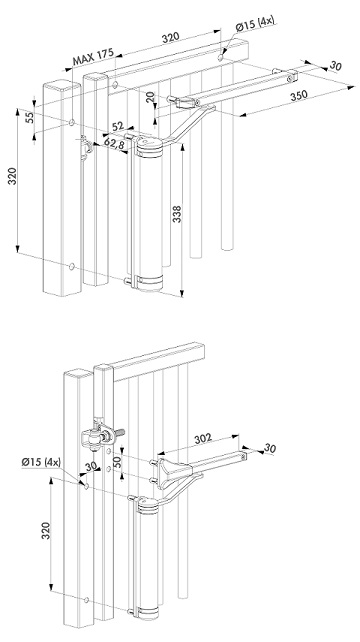

• Railset included for 90° and 180° situations
• Scratch Resistant and Corrosion Free Anodized Aluminium housing
• Compact & Aesthetic Design
• Closing Speed Unaffected by Temperature Changes
• For Left & Right Turning Gates
• Integrated Pre-Tension for Extremely Smooth Installation
• Easy & Fast Mounting – Quick-Fix
• Easy to Open

Specifications:

• Left-Right Adjustability – Yes
• Gate Width – 0-1100mm
• Gate Weight –  Maximum 75kg
• Force – 16Nm
• Maximum Opening Angle – 180°
• Final Snap Adjustability – Yes
• Speed Adjustability – Yes

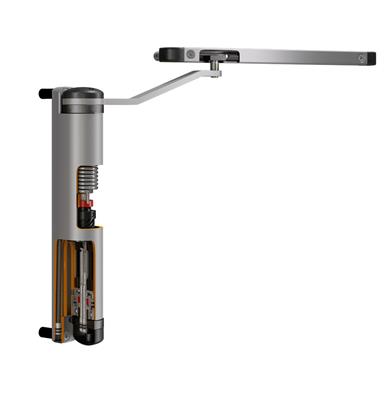

• Hydraulic Gate Closer – Yes
• Materials Main Part(s) – Powder Coated Aluminium
• Temperature Range – (-30°C / 70°C)
• Norms – ADA  PMR
• Hours of Salt Spray – 500
• Testing Test Frequency – 500000
• Years of Warranty – 3

Installation Instructions – Click Here
