Description

The compact all-in-one gate operator can easily be installed on any type of post and hinge thanks to 3 different arm types. The innovative motor’s performance remains unaffected by manual force. When combined with access control, the Venus works as a low-energy gate opener.

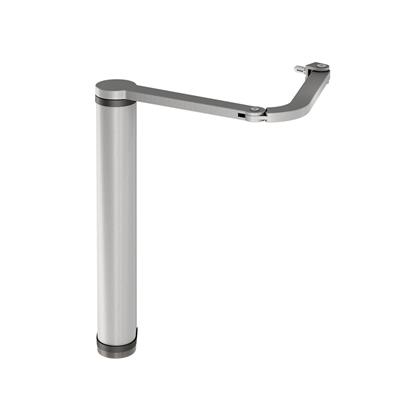

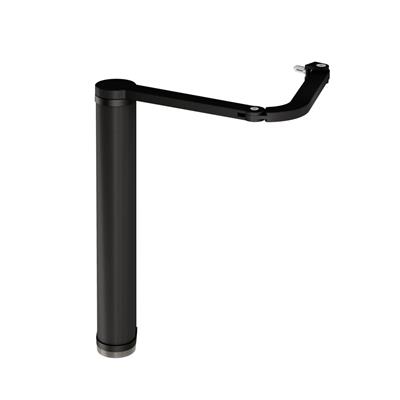

Venus – A arm available enquire for pricing.

Features:

• Motorised Gate Closer with Integrated Electronics
• Steel Gear Box
• Anodized Aluminium Cover
• 3 Different Arm Options for Installation
• Easy Mounting with Quick-Fix
• ETL-Tested
• Integrated Warning Light
• Automated Obstacle Detection with Reverse Function
• Long Lifespan and Intensive Usage
• Reversible Motor with Backdrivability for Easy Manual Use (To be Combined with a Lock)
• Compact and Vandal-Proof Design
• Configuration Via App

Specifications:

• Installation Method – Quick-Fix
• Profile Type – 80mm Flat Square
• Torque – 150Nm
• Gate Width – 1400mm Wide
• Weight Rating – 100 kg
• Operating Voltage – 110V – 240V AC
• Input Main Power Supply – 110 AC to 240V AC
• 3 Inputs and 3 Outputs (Max. 48W, 24V DC)
• IP Rating – 54
• Maximum Opening Angle – 180°
• Force Adjustability – Yes
• Speed Adjustability – Yes
• Materials Main Part(s) – Anodised Aluminium Stainless Steel Mechanism
• Temperature Range – ( -30°C / 70°C)
• Norms – ADA   PMR   EN16005
• Hours of Salt Spray Testing – 1000
• Test Frequency – 500000
• Years of Warranty – 2

Installation Instructions – Click Here
