Description

Features:

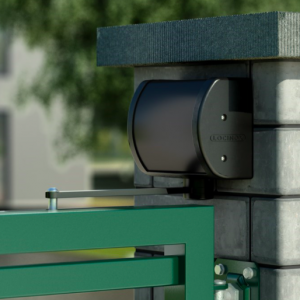

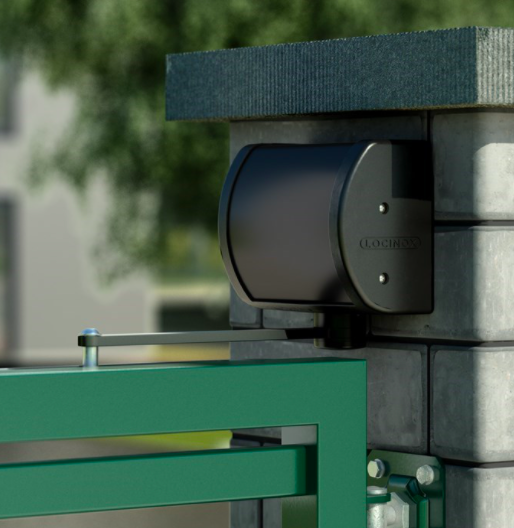

The Panther is a versatile, easy-to-install, and compact gate closer designed specially for wall and post situations. The Panther is installed above the gate or between two pillars and can precisely be adjusted to anyone’s wishes. The guaranteed closing force over the full 120° opening angle results in a worry free use, regardless of the weather conditions. The aesthetic and scratch free anodized housing ensures a very long life cycle.

• Self-Closing Gate Closer with Adjustable Speed and Final Snap
• Closing Speed Unaffected by Temperature Changes
• Aesthetic & Compact Design
• Scratch Resistant and Corrosion Free Anodized Aluminium Housing
• Closing Force over the full 120° Opening Angle

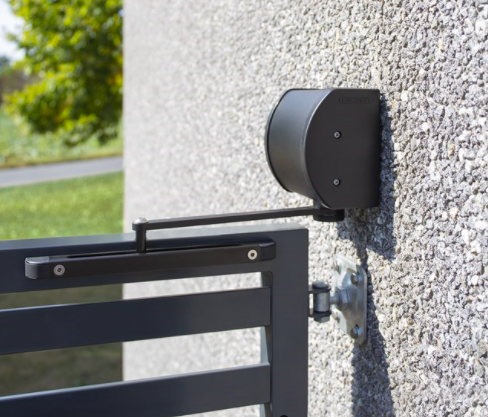

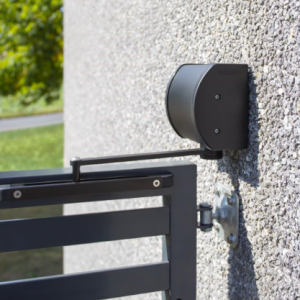

• Designed to be Installed above the Gate
• Integrated Pre-Tension for Extremely Smooth Installation

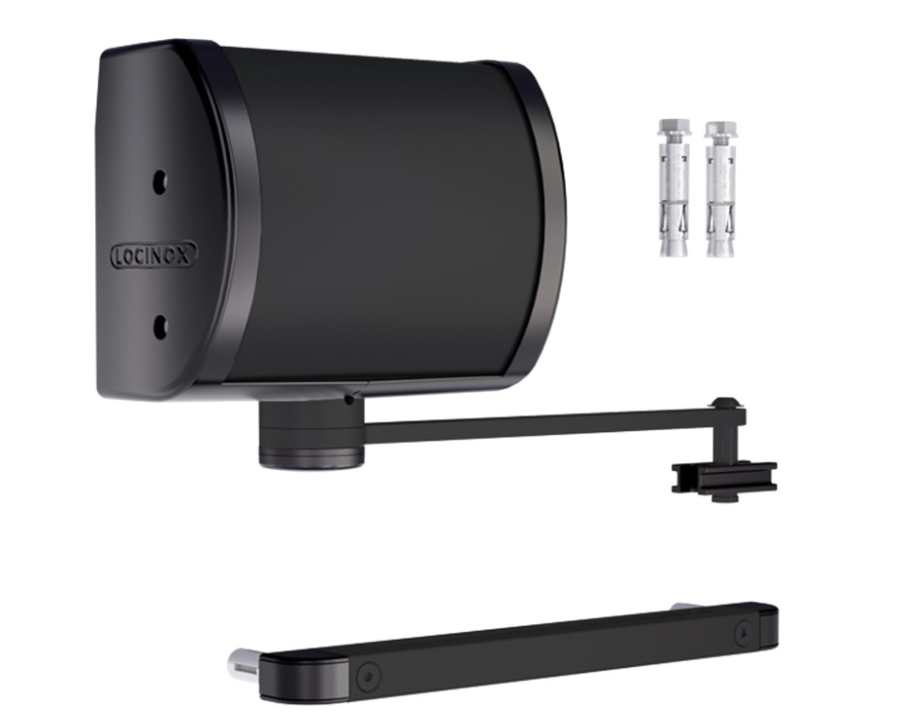

• Quick-Fix and Wall Anchors Included
• For Left & Right Turning Gates
• Easy to Open – Max. 19Nm
• Recommended with Gate-Stop

Technical Specifications:

• Left-Right Adjustability – Yes
• Gate Width – 0 – 1500mm
• Gate Weight – 0 – 150kg
• Force – 19Nm
• Maximum Opening Angle – 120°
• Final Snap Adjustability – Yes
• Speed Adjustability – Yes
• Hydraulic Gate Closer – Yes
• Materials Main Part(s) – Powder Coated Aluminium
• Temperature Range – (-30°C / 70°C)
• Norms – ADA  PMR  ROSPA
• Hours of Salt Spray Testing – 500
• Test Frequency – 500000
• Years of Warranty – 3

Instruction Manual – Click Here
