Description

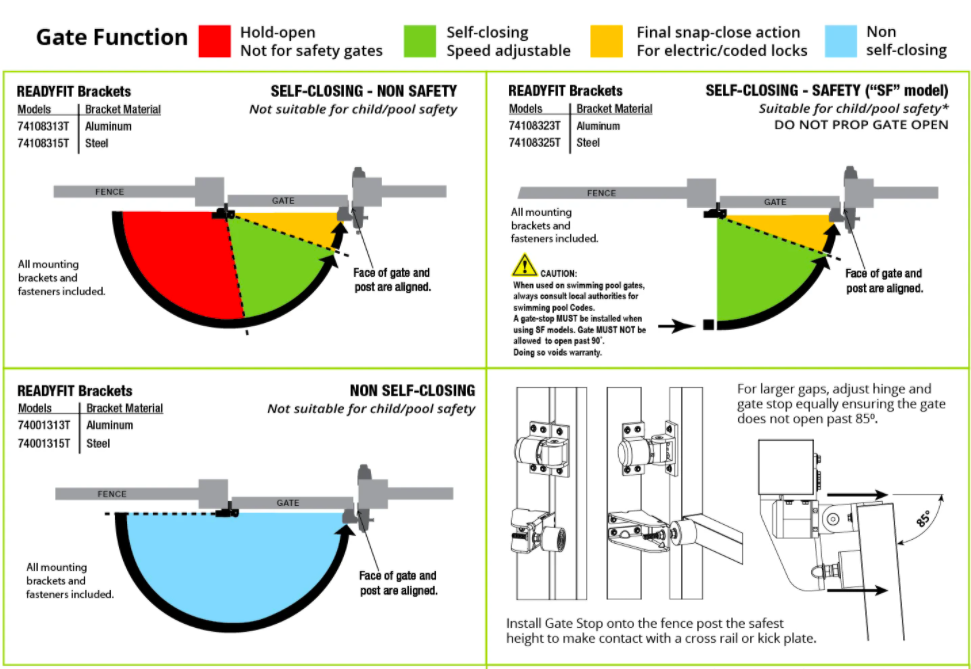

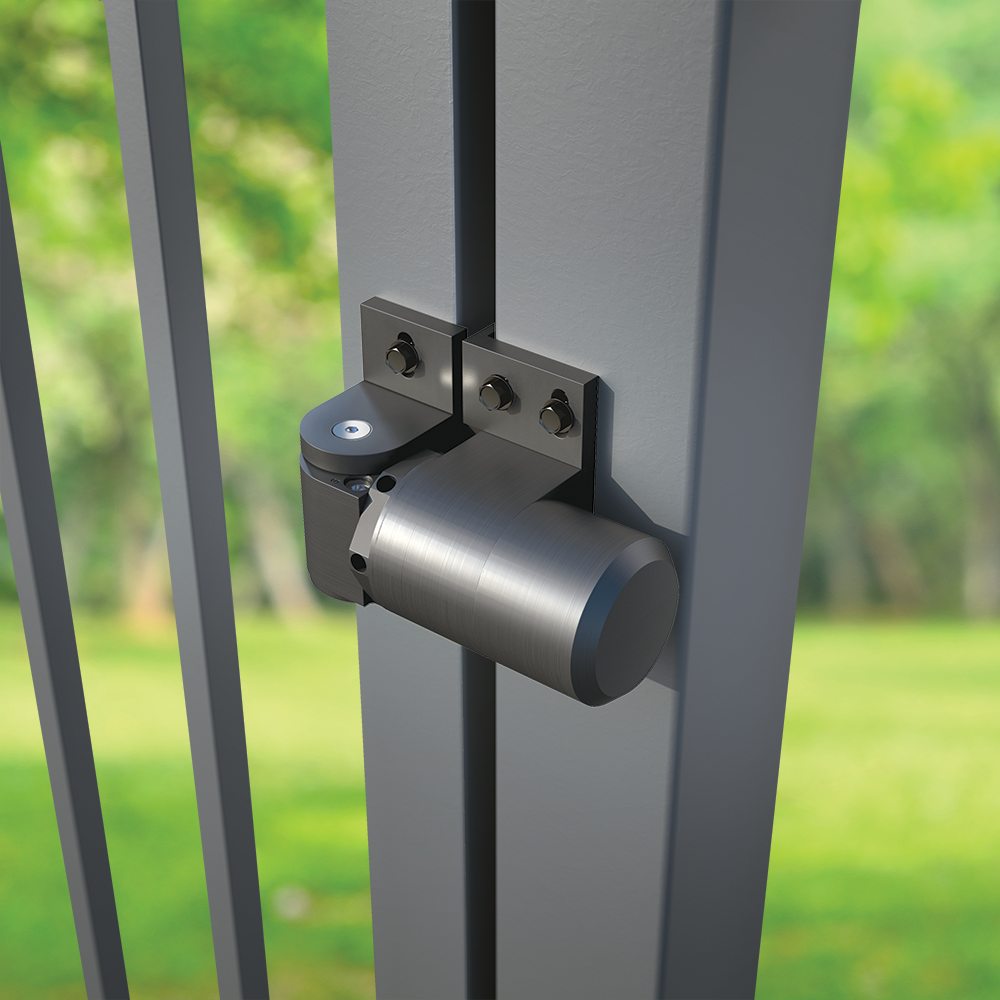

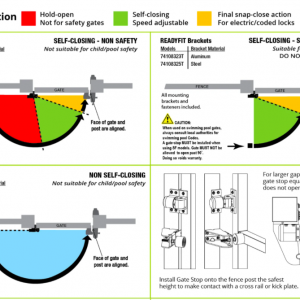

Hydraulic SureClose® Gate Closers & Hinges are designed to replace conventional, bulky commercial gate hinges and closers. These strong and sturdy hinge-closers provide smooth, bind-free performance. Superb engineering and patented design allow clever concealment of the hydraulics in a remarkably small housing. There is no compromise of quality with these small-footprint SureClose® gate closers and hinges. Each ‘ReadyFit’ model lives up to its name by providing convenient screw slots and holes for sturdy fixing. 25mmx12g self-drilling Tek screws are supplied. The slots allow fine vertical adjustment for speedy gate alignment. Horizontal adjustment is attained by way of a built-in, adjustable locking ring that rotates in or out as required to ensure the gate is level and overall alignment is achieved. It’s remarkably simple for a commercial-style gate closer product. All SureClose® Hinges and Closers are made of high-grade aluminium. Optional, L-shaped steel mounting brackets can either be welded or fastened to appropriate gate frames and posts. Available with or without (safety version) a ‘hold open’ feature. The safety version has no hold-open function at 90 degrees and is therefore suitable for child/pool safety gates. A gate-stop MUST be installed when using Safety models. Gate MUST NOT be allowed to open past 90 degrees. Doing so voids warranty. Ensure hinges are at least 900 mm apart so they cannot be used as footholds by toddlers. Weld-on model (NB Steel Bracket) is available by special order, it is not a stocked item.

Features:

• Hidden Hydraulics for Quiet, Controlled Closing
• Gap Variance of 12-35mm (½” to 1⅜”)
• Self-Closes Gates up to 120kg (260 lbs) – See Chart
• Multiple Mounting Options, Includes Fasteners

• Safety Gate Models Available
• Final Snap Close Action – All 108 models
• Alignment Legs Give Double Face-Fixing Strength
• Emergency Override Feature for Safety and Longevity
• Minimum Fence Post Size 50mm (2″)

• 5 Year Limited Warranty
• Commercial-Grade, Combination Hinge and Closer
• Easily Retro-Fitted to Existing Gates

Technical Specifications:

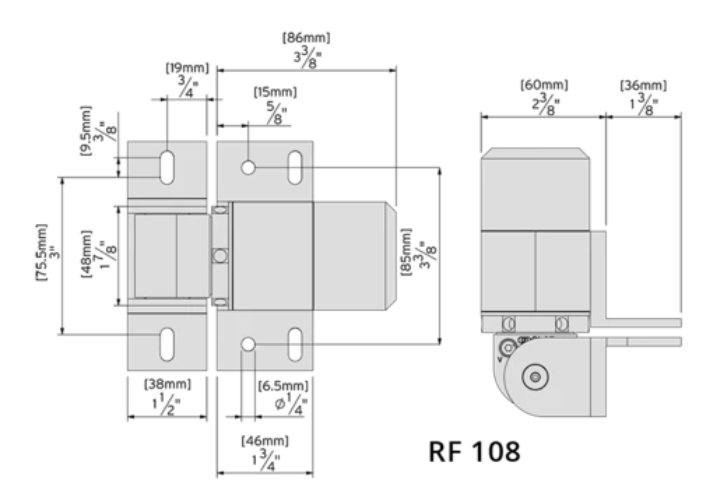

• Product Code – DD-ALI RF 74108323 RF 108SF S & DD-ALI RF 74108313 RF 108S
• Gate Application – Front Gate, Side Gate, Pedestrian Gate, Pet Gate, Playground Gate, Public/Commercial Gate, Security Gate, Privacy Gate
• Hinge Type – Self-Closing, Hold-Open
• Gate Material – Aluminium, Steel/Ornamental Iron
• Self-Closing Gate Weight – Up to 120kg (260lbs)
• Maximum Gate Size – 1.0m W x 1.8m H (4ft x 6ft)
• Gate Frame/Post Shape – Square-to-Square
• Minimum Post Size – 50mm+ (2″)
• Ideal Gate Gap – 12-35mm (½-1½”)
• Fixing Method – Screw-On or Weld-On
• Colour – Black Anodised
