Locinox Fifty Lock

NZD $95.36

Lock Only

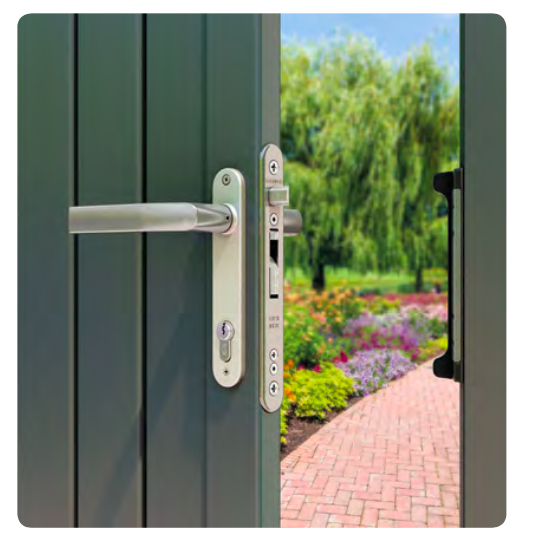

Insert lock with 30mm backset for profiles of 50mm or more. 100% stainless steel mechanism. The stainless steel adjustable self-latching bolt and hook combined with the correct keep guarantee a strong and solid closed gate where the gate wings can not be pulled apart or forced open. The lock can be installed on metal, aluminium and PVC gates. Thanks to the patented “Click- It” system the lock is mounted in seconds.


  • Stainless steel lock mechanism with cover plate against dirt penetration
  • Mechanism, hook, frontplate, latchbolt: stainless steel

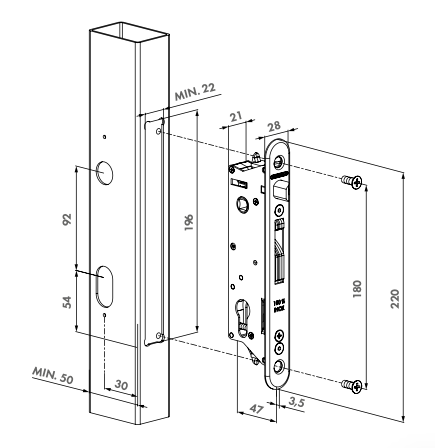

  • Backset 30 mm, for mounting in profiles of 50 mm depth or more
  • Continuous adjustment of the daybolt up to 10 mm without dismounting the lockbox
  • Key-operated self-latching bolt
  • Easy left or right changing of the self-latching daybolt
  • Throw of the hook: 21 mm
  • Center-distance cylinder <=> handles = 92 mm
  • Compatible with all Europrofile cylinders
  • Handles to be ordered separately
  • Optional: Cover shield for handle & cylinder holes in aluminium, polyamide or stainless steel.

Available in Lock Only or Lock Set (Set comprises Lock, Handle 3006M-H, Cover 3020-HYB-ALU BLK, cylinder)

Recommended Keeps (Sold Separately): LX SFKB, LX SFKM.

Recommended Handles: LX3006M-H, LX 3006I-H.

Additional information


Lock Only, Lock Set
