Locinox Sixty Lock – Set

Price range: NZD $230.88 through NZD $270.40 + GST

SKU: LX-SIXTY SET Category: Tag:

Description

Insert lock with 40mm backset for profiles of 60mm or more. 100% stainless steel mechanism. The stainless steel adjustable self-latching bolt and hook combined with the right keep guarantee a strong and solid closed gate where the gate wings can not be pulled apart or forced open. The lock can be installed on metal, aluminium and PVC gates. Thanks to the patented “Click-It” system, installing the lock can be done in a matter of seconds. Set is complete with sixtylock, keep, cover plates, handles and cylinder/lock barrel.

Cover Plates and Handles available in Ali, Black or Stainless Steel

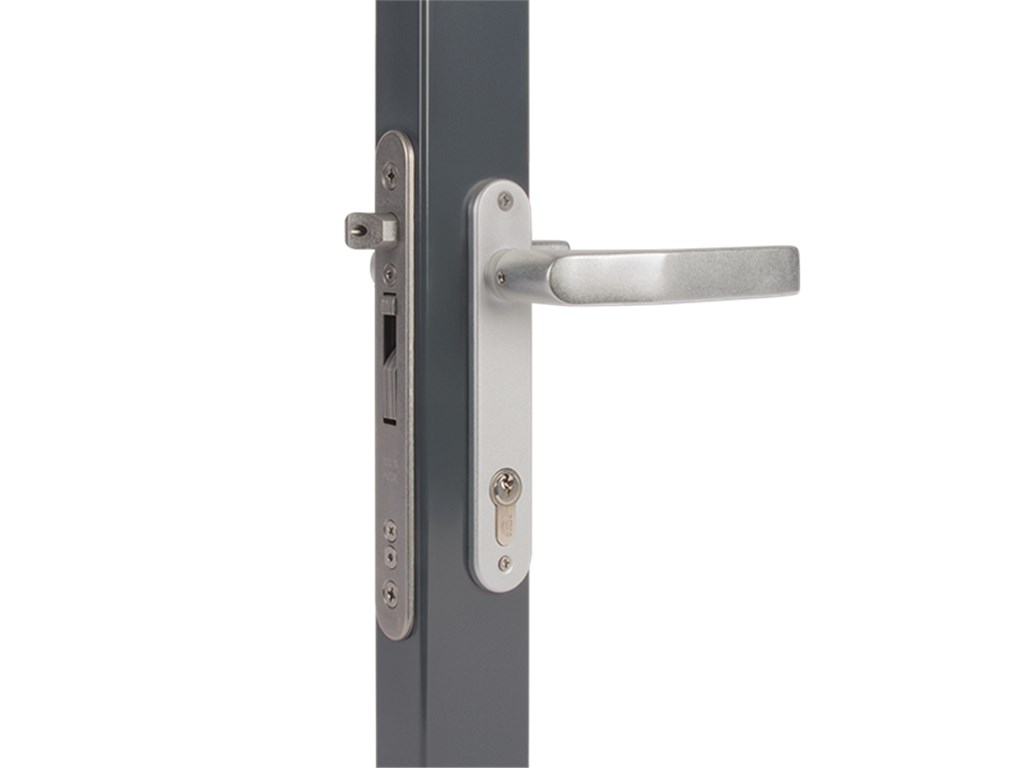

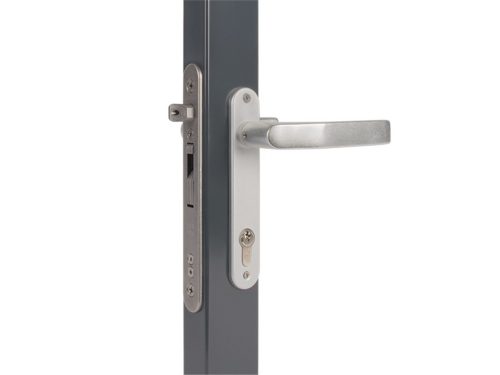

Image shows Aluminium LX-HYB3020-ALU cover plate with LX-HYB3006J-H handles

Recommended Keeps (Sold Separately): LX-SFKB, LX-SFKM

Features:
  • Stainless Steel Lock Mechanism with Cover Plate Against Dirt Penetration
  • Mechanism, Hook, Frontplate, Latchbolt: Stainless Steel

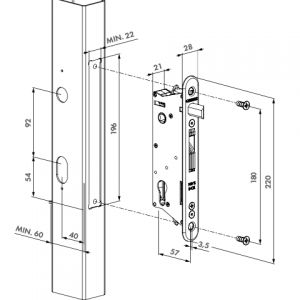

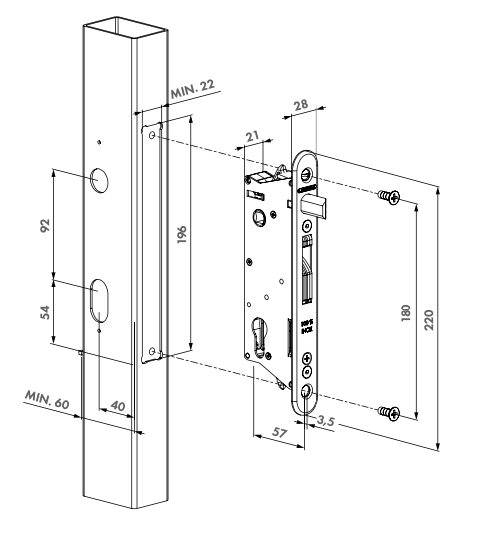

  • Backset 40mm, for Mounting in Profiles of 60mm Depth or more
  • Continuous Adjustment of the Daybolt up to 10mm Without Dismounting the Lockbox
  • Key-Operated Self-Latching Bolt
  • Easy Left or Right Changing of the Self-Latching Daybolt
  • Throw of the Hook: 21mm
  • Center-Distance Cylinder <=> Handles = 92mm
  • Compatible with all Euro Profile Cylinders
  • 70mm Euro Profile Cylinder with Three Keys

Installation Instructions – Click Here

Additional information

Cover Plates and Handle

Ali, Black, Stainless Steel
