Description

High quality gate lock with aluminium housing and stainless steel mechanism. We advise this lock as a standard for all your industrial gates. The 20 mm continuous adjustability of the bolts allows a perfect latching / locking of the mechanism. A solid stainless steel deadbolt with a 23 mm throw guarantees a secure locking. Standard supplied with anodized aluminium handle pair. For a fast and highly precise installation, we recommend using the Drill-Fix drilling jig.

Available in:

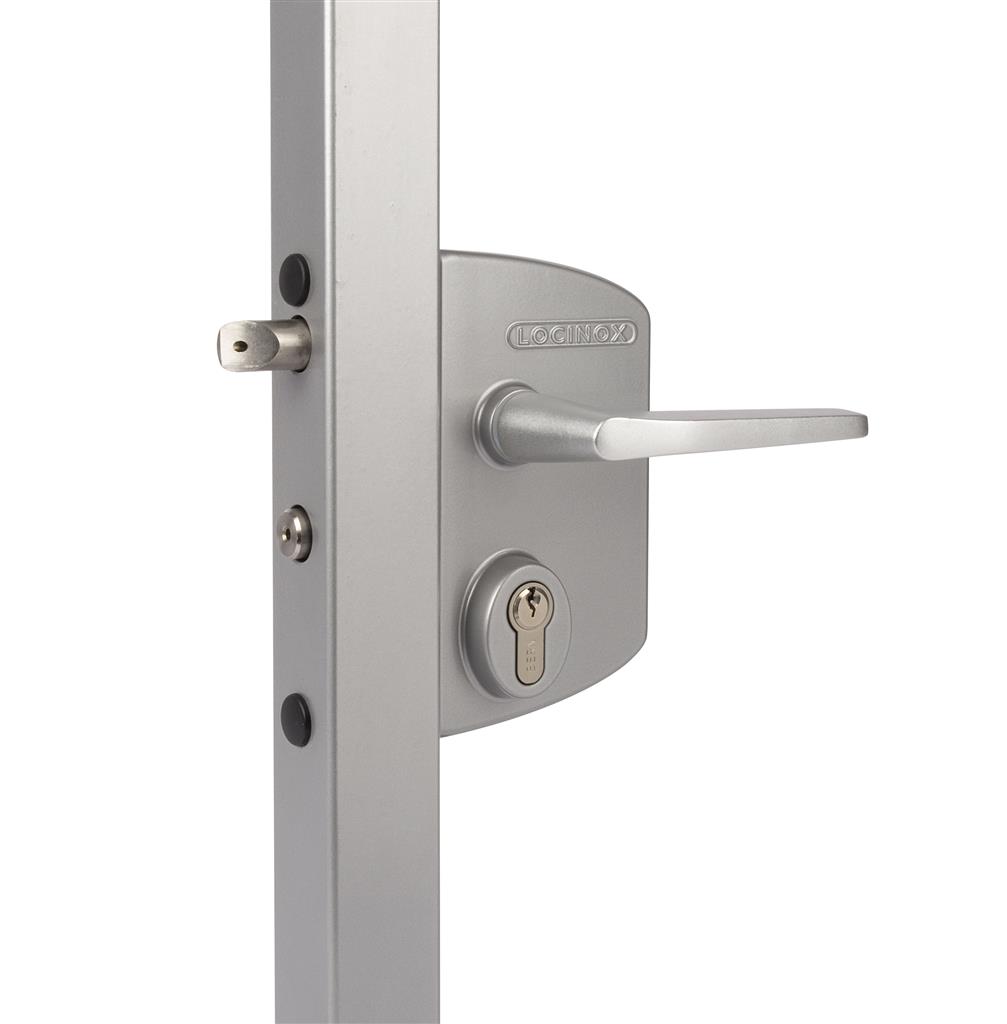

• Silver 40-60sqmm (with LX3006M Ali Handle)

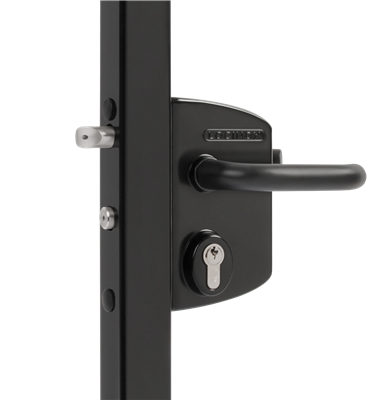

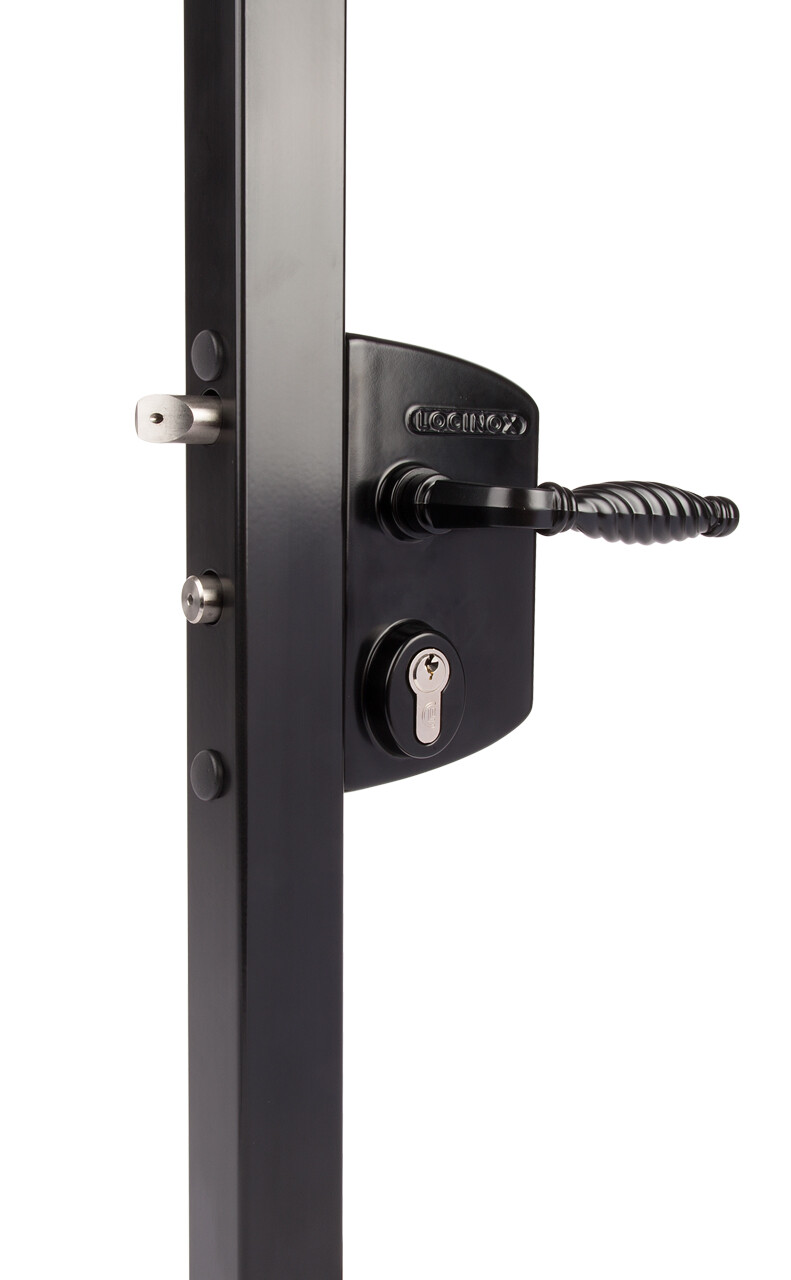

• Black 40-60sqmm (with LX3006B Black Anodised Handle)
• Silver 10-30sqmm (for flat profiles with LX3006M Ali Handle)
• Black 10-30sqmm (for flat profiles with LX3006M Ali Handle )

Recommended keep: LXSAKL (Standard Keep) or LXSHKL (Security Keep).

Features:

• All Stainless Mechanism
• Cast Aluminium Body & Handles
• Extendable Bolt Suits Profiles 40-60mm

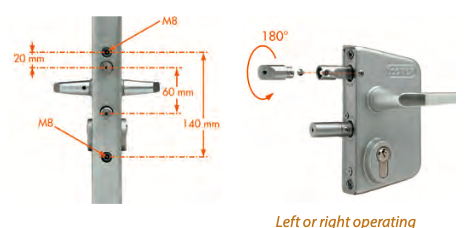

• Left or Right Operating
• Designed to Fit 40-60sqmm or 10-30sqmm
• ISO 9227 KTL / E-Coated Lock Box
• Easy Left or Right Changing of the Self-Latching Daybolt
• 23mm Throw of the Dead Bolt, in 1 Turn of the Key
• Key-Operated Self-Latching Bolt

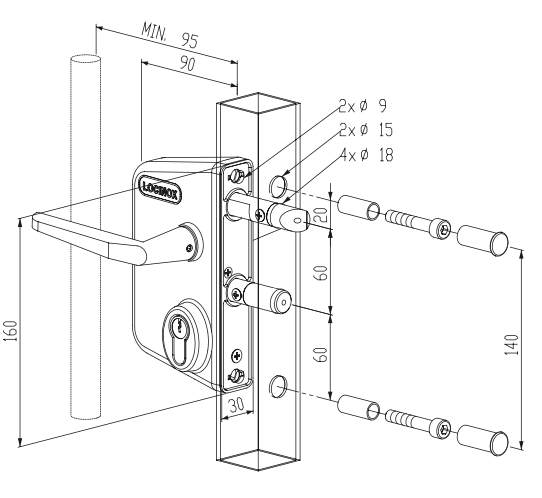

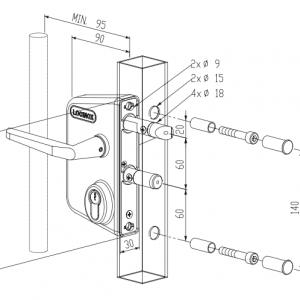

• 4-Hole Fixing with Two Hexagon Socket Head Screws
• 60mm Center Distance of the Bolts

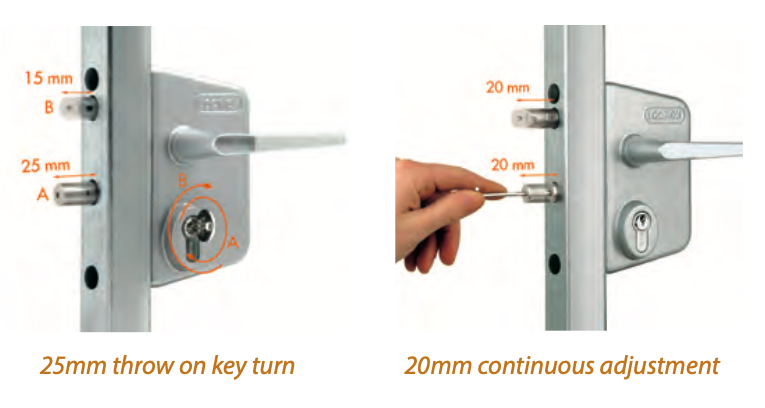

• Continuous Adjustment of the Daybolt up to 20mm Without Dismounting the Lock Box
• Stainless Steel Mechanism

Technical Specifications:

• Left-Right Adjustability – Yes
• Installation Method – Hexagon Nuts (HEX 5) + Spacers
• Daybolt Adjustability – 20mm
• Nightbolt Adjustability – 20mm
• Key-operated Self-Latching Bolt – Yes
• Throw – Square 8mm
• Follower Size -Nightbolt 23mm Flat, Round, Square
• Profile Type – Nightbolt 23mm
• Cylinder Type – Euro Profile
• Cylinder Length – 54mm
• Materials Main Part(s) – KTL And Spray Coated Aluminium Housing Stainless Steel
• Norms – Mechanism ISO 9227 KTL
• Hours of Salt Spray Testing – 1000
• Test Frequency – 500000
• Years of Warranty – 3

Installation Instructions – Click Here
