Description

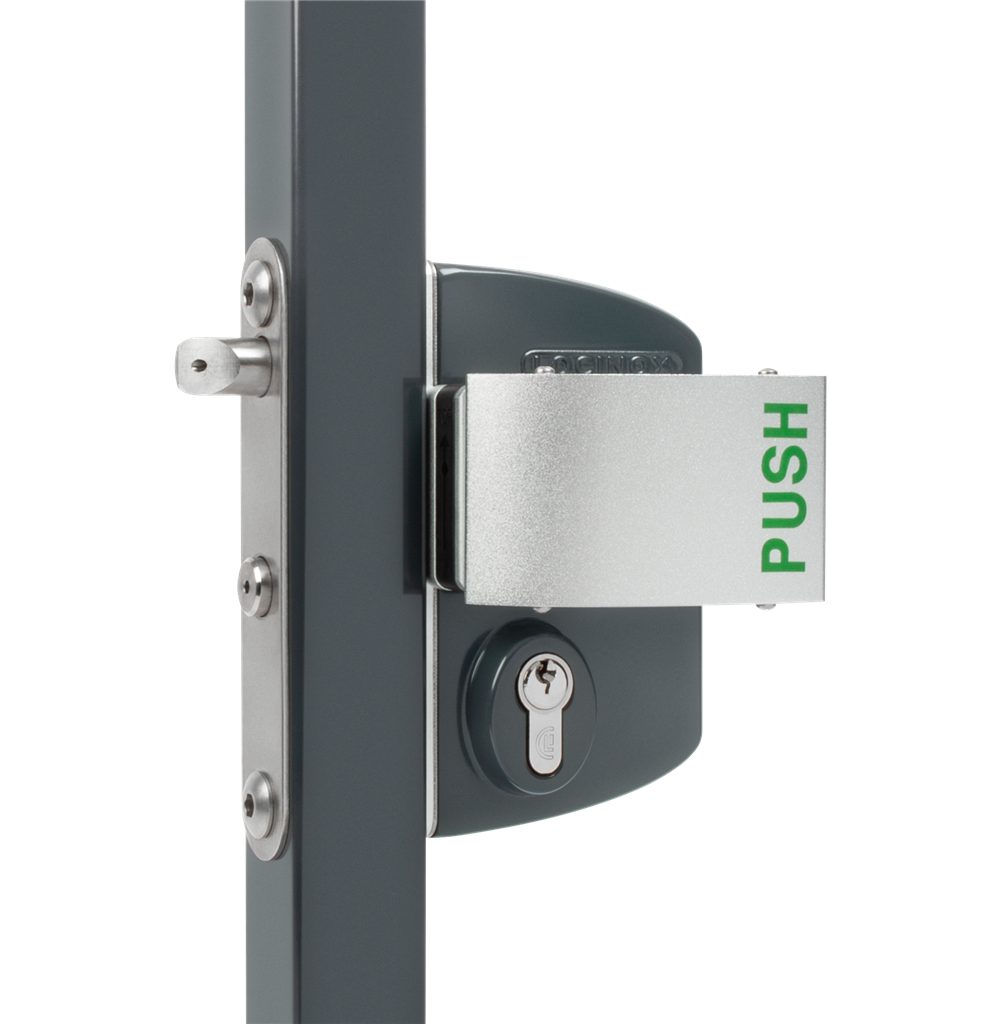

The stainless steel superior anti-panic lock with aluminium housing. EN179 certified configuration possible with LPKQ U2 for 40 & 60 mm gate frames with SAKL keep, 3006A-2 handle and 3012-54-STD- cylinder. Escape or exit from inside is possible at all times by operating the handle. Mechanical access from the outside is always possible by operating the cylinder. The 20 mm continuous adjustability of the bolts allows a perfect latching / locking of the mechanism. A solid stainless steel deadbolt with a 23 mm throw guarantees a secure locking. For a fast and highly precise installation, we recommend using the Drill-Fix drilling jig.

Recommended Keeps: LX SAKL (Standard Keep), LX SHKL (Security Keep) or LXModulecSA (Modulec Electronic Keep)

Features:

• ISO 9227 KTL / E-Coated Lockbox
• Easy Left or Right Changing of the Self-Latching Daybolt
• 23mm Throw of the Deadbolt, in 1 Turn of the Key
• Key-Operated Self-Latching Bolt
• 4-Hole Fixing with Two Hexagon Socket Head Screws
• 60mm Center Distance of the Bolts
• Continuous Adjustment of 20mm for the Bolts Without Removing the Lock

Technical Specifications:

• Left-Right Adjustability – Yes

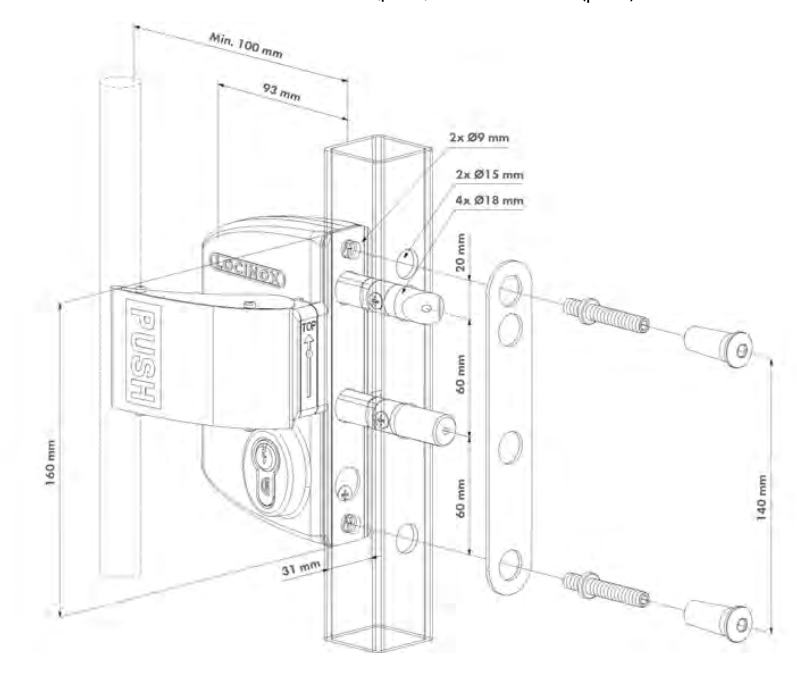

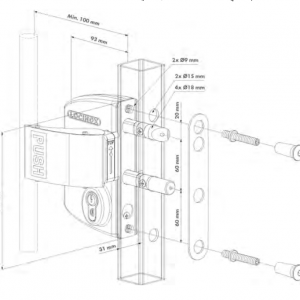

• Installation Method – Hexagon Nuts (HEX 5) + Spacers
• Daybolt Adjustability – 20mm
• Nightbolt Adjustability – 20mm
• Key-operated Self-Latching Bolt – Yes
• Throw – Nightbolt 23mm
• Follower Size – Square 8mm
• Profile Type – Square
• Cylinder Type – Euro Profile
• Cylinder Length – 54mm
• Materials Main Part(s) – KTL And Spray Coated Aluminium Housing Stainless Steel Mechanism
• Norms – ISO 9227 KTL EN 179
• Hours of Salt Spray Testing – 1000
• Test Frequency – 500000
• Years of Warranty – 3

Installation Instructions – Click Here
